DGVZ.6.16.35.30.00 AN2P
Part number DGVZ616353000AN2P

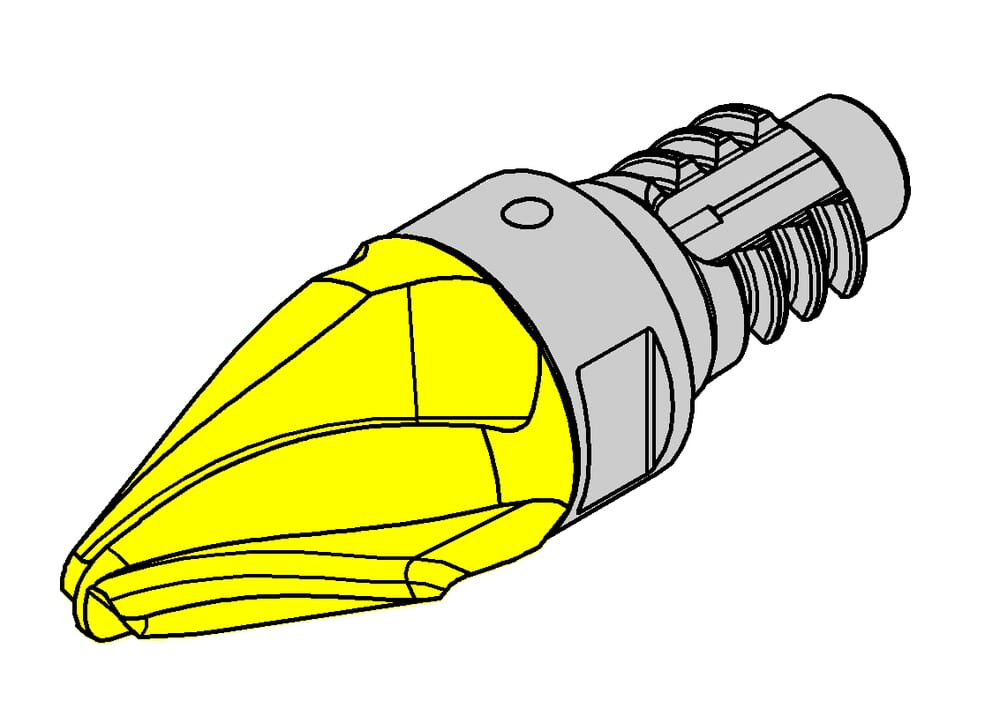

HORN DGVZ.6.16.35.30.00 AN2P for Milling
Please note:Technical instructions
DIN_SSC
HORN-DG01610N
eclass-shortcut
21-18-06-90

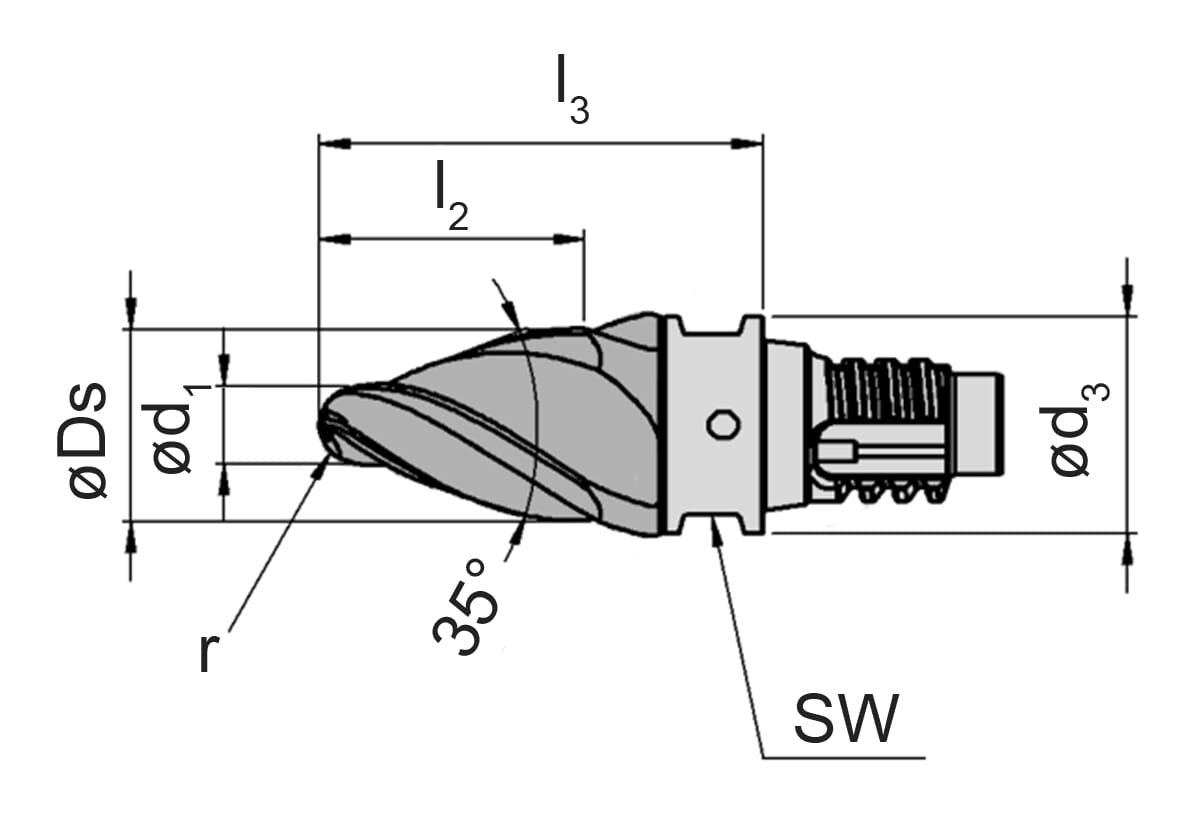

Diameter (d1)
5.72
mm
Tool length from stop, flange (l3)
32
mm
Radius, full-radius (r)
3
mm
Key range (SW)
13
mm
Neck diameter (d)
15.6
mm
Maximum milling depth (ap)
18.4
mm
Katalog_SSC
DG0161
ISO_SSC
HORNDG01618$0N$$$$$
System (System)
DG16
Number of teeth (Z)
6
St.
Cutting diameter (Ds)
16
mm
