DPK.3.050.05.15 TF2K
Endmill
Part number DPK30500515TF2K

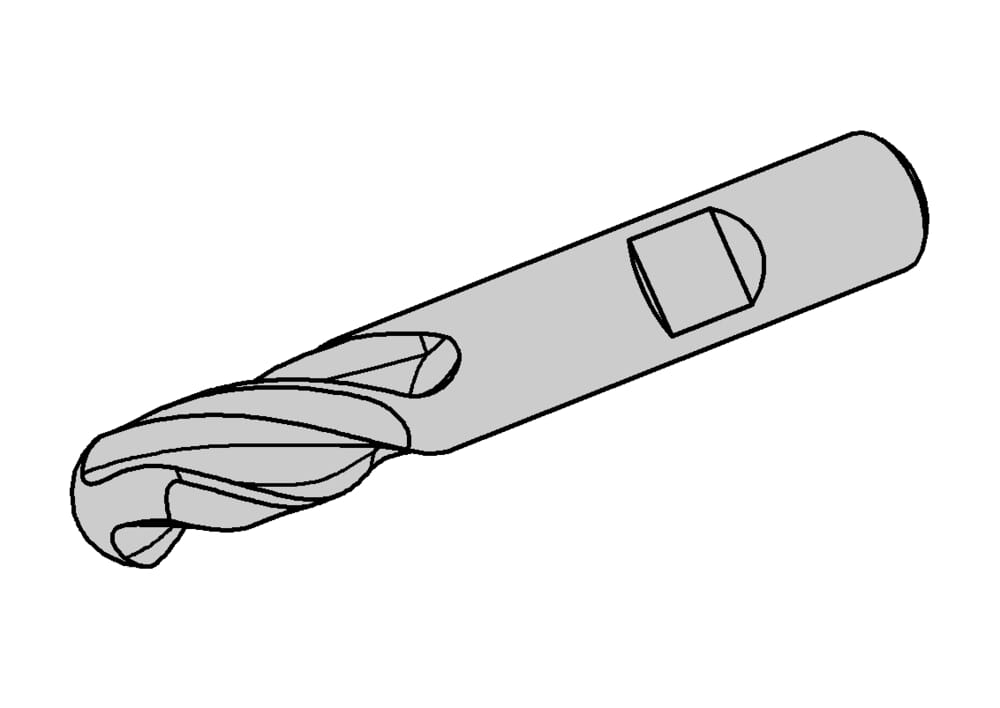

HORN Endmill DPK.3.050.05.15 TF2K for Milling
Please note:Technical instructions
Shank diameter (d2)
5 mm
Cutting diameter (d1)
5 mm
Number of teeth (Z)
3 St.
DIN_CCTMS
ZYL00500105
ISO_CCTMS
ZYL10F6000h$06
Radius, full-radius (r)
2.5 mm
Type (Ausführung)
HA
Effective cutting length (l2)
15 mm
Total length (l1)
50 mm
eclass-shortcut
21-18-06-01
