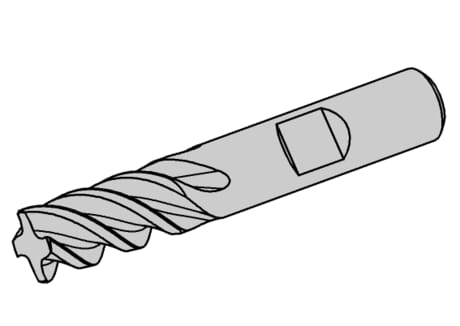

DPSV4100251022_PICTO.TIF

DPSV.4.20.040.20.38 TF2K

Endmill

ZIRKULAREINTAUCHEN.EPS

RAMPE_EINTAUCHEN.EPS

SCHAFTFORM_HB.EPS

FRAESEN_VHM_TROCHOIDALFRAESEN.EPS

PLANFRAESEN.EPS

ZENTRUMSSCHNEIDEND.EPS

VHM_ECKFASE.EPS

TAUCHFRAESEN.EPS

TASCHENFRAESEN.EPS

Part number DPSV4200402038TF2K

HORN Endmill DPSV.4.20.040.20.38 TF2K for Milling

Please note:Technical instructions

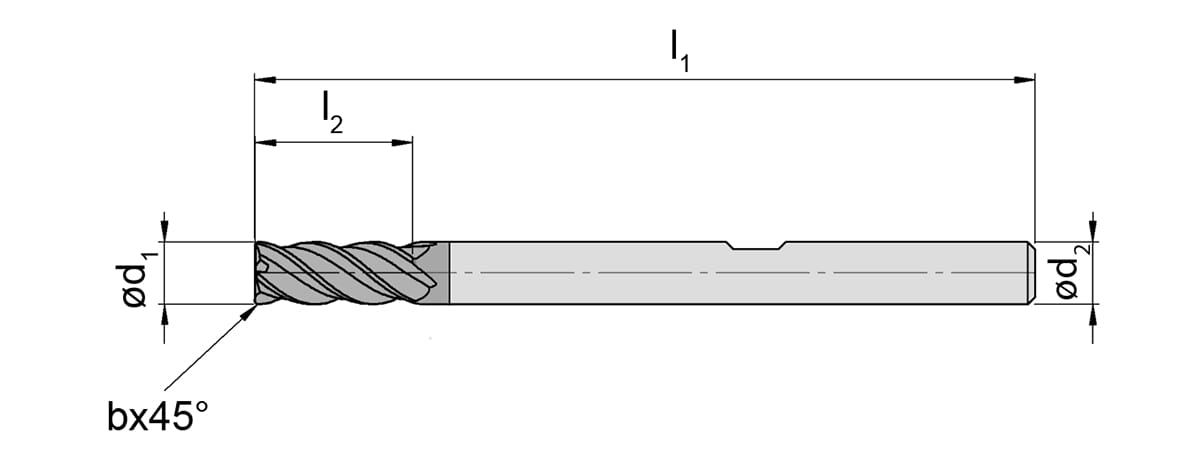

Shank diameter (d2)

20 mm

Cutting diameter (d1)

20 mm

Number of teeth (Z)

4 St.

DIN_CCTMS

ZYL02001005

ISO_CCTMS

ZYL10G2000h$06

Type (Ausführung)

HB

Effective cutting length (l2)

38 mm

Corner bevel (45 ° x b) (b)

0.4 mm

Total length (l1)

104 mm

eclass-shortcut

21-18-06-01
