DSA.3.160.030 MG3K
DS endmill
Part number DSA3160030MG3K

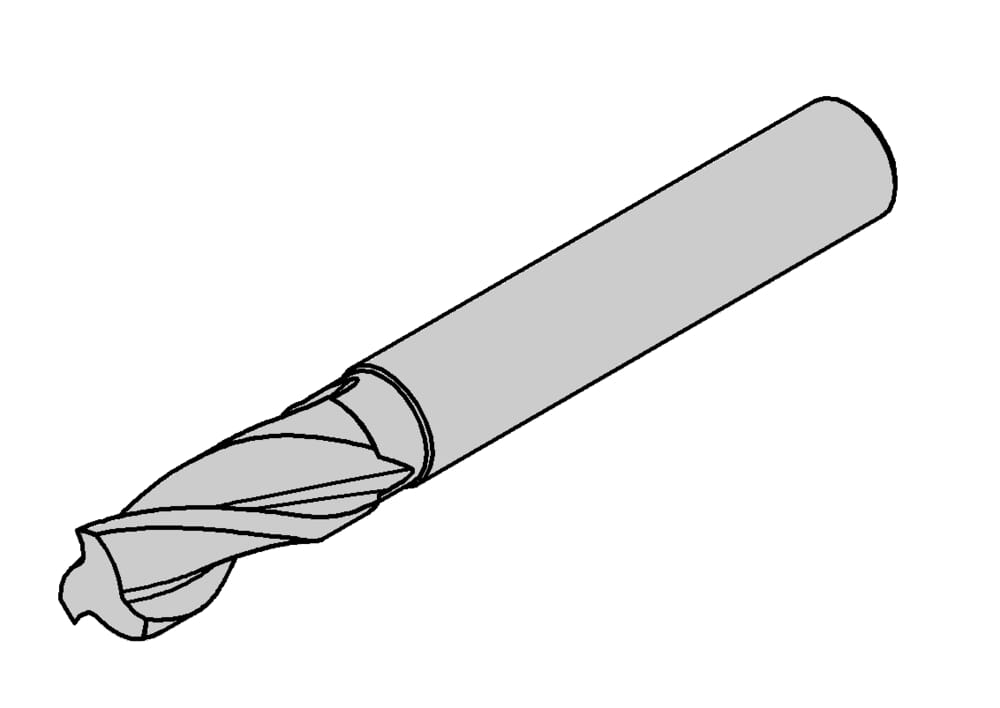

HORN DS endmill DSA.3.160.030 MG3K for Milling
Please note:Technical instructions

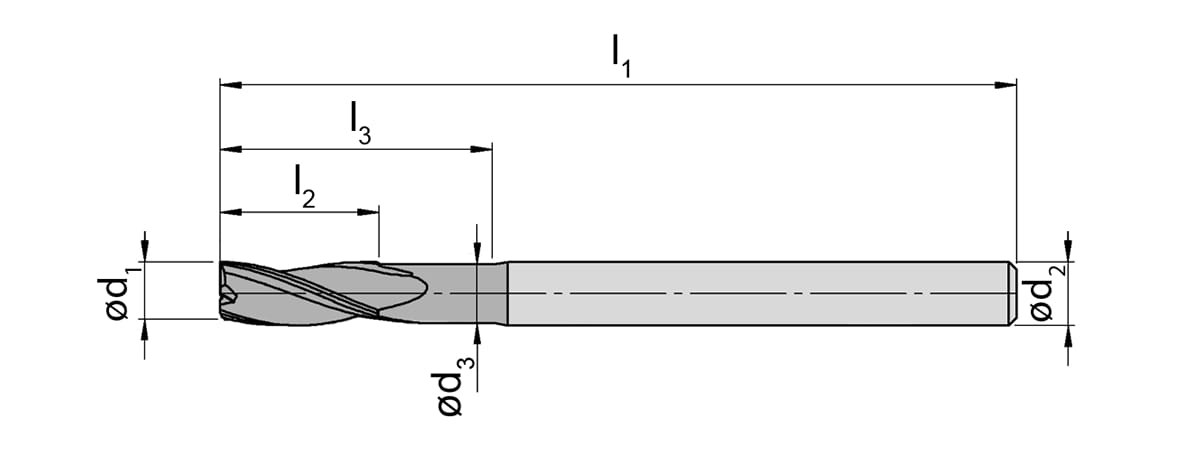

Shank diameter (d2)
16
mm
Neck length (l3)
48
mm
Cutting diameter (d1)
16
mm
Number of teeth (Z)
3
St.
DIN_CCTMS
ZYL01600105
ISO_CCTMS
ZYL01G1600h$06
Neck diameter (d3)
15
mm
Effective cutting length (l2)
40
mm
Total length (l1)
108
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSA3160030.DXF | Download |
| DSA3160030_20230112_193229755.STP | Download |
| Download all files | |
