DSDH.4.08.77.08.05 TS3K
DS Milling cutter
Part number DSDH408770805TS3K

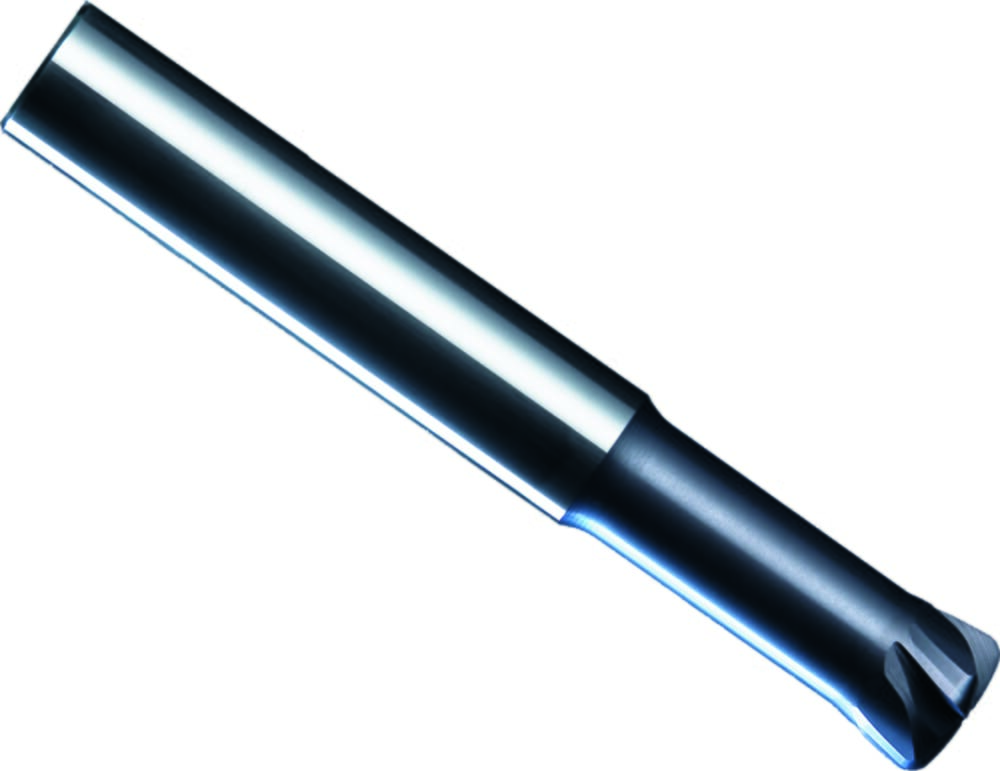

HORN DS Milling cutter DSDH.4.08.77.08.05 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

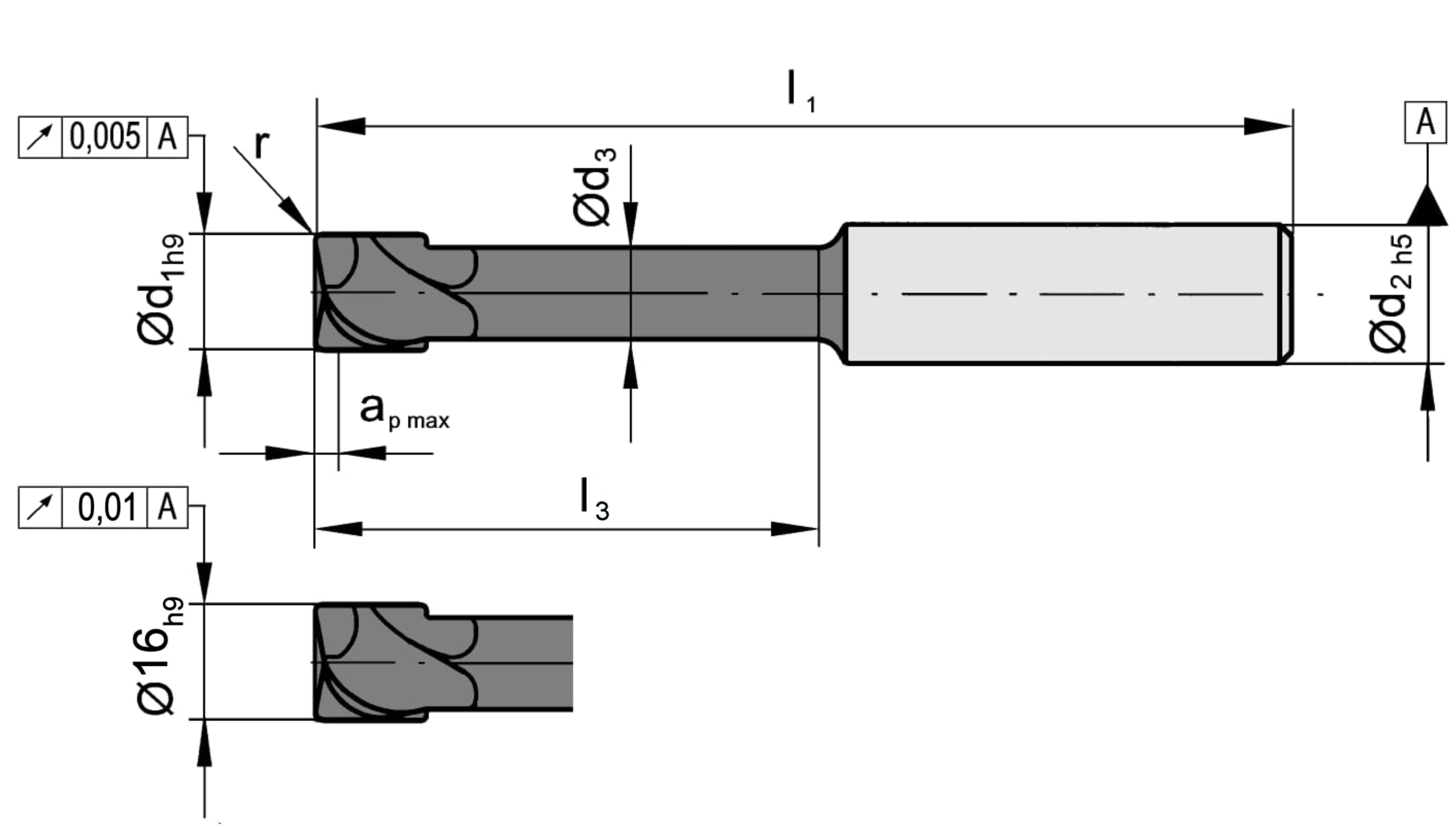

Total length (l1)
77
mm
Maximum stepover (ap) (ap)
0.25
mm
Corner radius (rtheo)
1.2
mm
Neck diameter (d3)
7.2
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
20
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DSDH_4_08_77_08_05.STP | Download |
| Download all files | |
