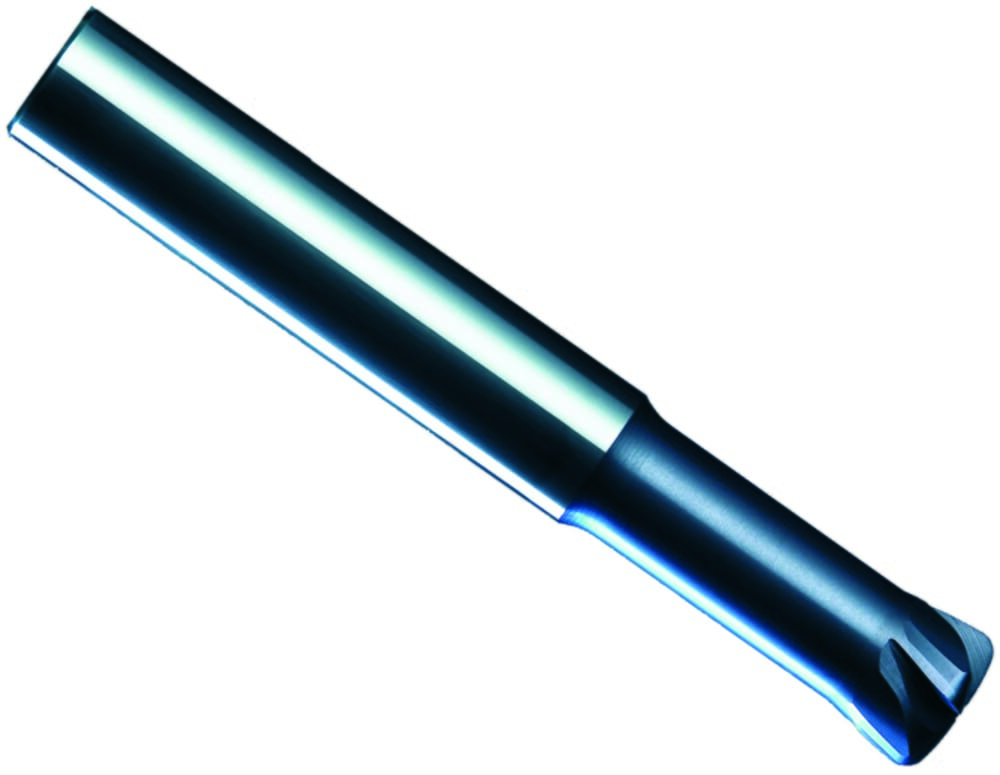

DSDS.4.06.77.06.08 TS3K
DS Milling cutter
Part number DSDS406770608TS3K
HORN DS Milling cutter DSDS.4.06.77.06.08 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Maximum stepover (ap) (ap)
0.4
mm
Corner radius (rtheo)
0.8
mm
Neck diameter (d3)
5.4
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
6
mm
Neck length (l3)
15
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSDS_4_06_77_06_08.STP | Download |
| Download all files | |
