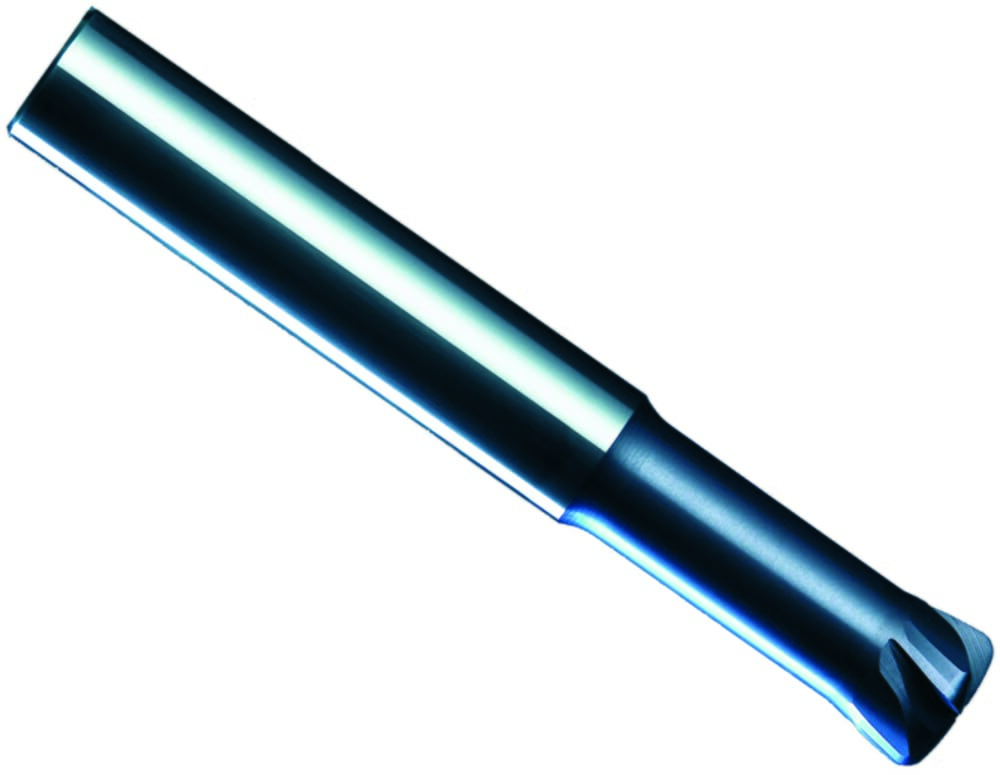

DSDS.4.10.77.10.15 TS3K
DS Milling cutter
Part number DSDS410771015TS3K
HORN DS Milling cutter DSDS.4.10.77.10.15 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Maximum stepover (ap) (ap)
0.7
mm
Corner radius (rtheo)
2
mm
Neck diameter (d3)
9
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
25
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSDS_4_10_77_10_15.STP | Download |
| Download all files | |
