DSDS.4.12.77.12.15 TS3K

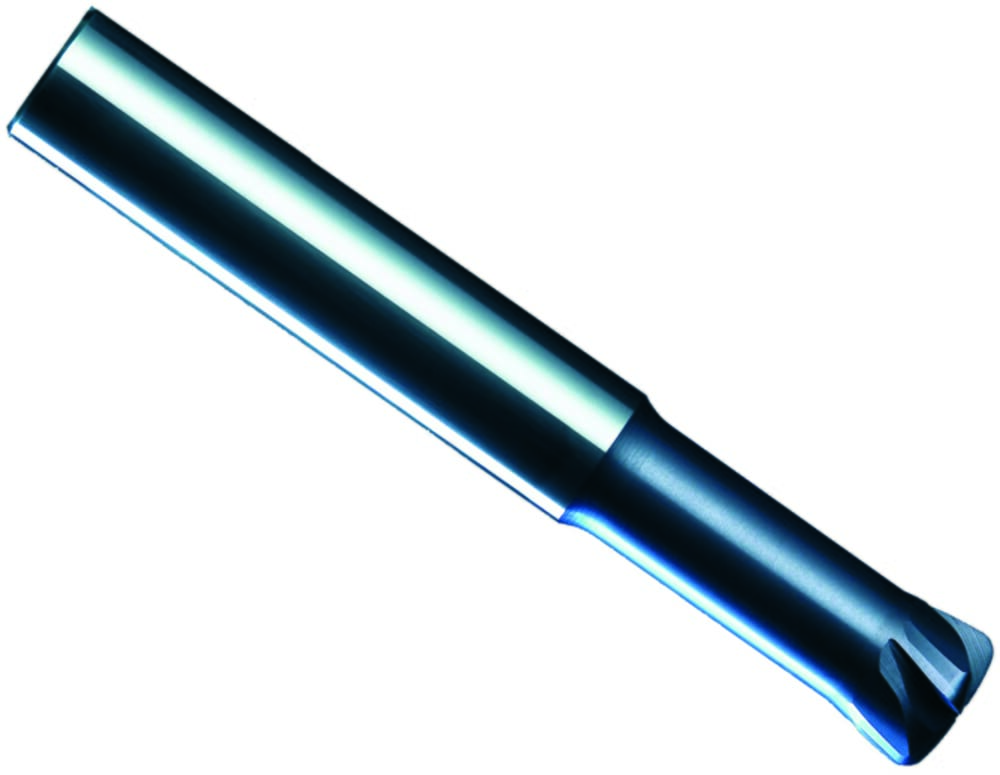

DS Milling cutter
Part number DSDS412771215TS3K
HORN DS Milling cutter DSDS.4.12.77.12.15 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Maximum stepover (ap) (ap)
0.8
mm
Corner radius (rtheo)
2.1
mm
Neck diameter (d3)
10.8
mm
ISO_CCTMS
ZYL01G1200h$06
DIN_CCTMS
ZYL01200105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
12
mm
Neck length (l3)
30
mm
Shank diameter (d2)
12
mm
| Downloads | |
|---|---|
| DSDS_4_12_77_12_15.STP | Download |
| Download all files | |
