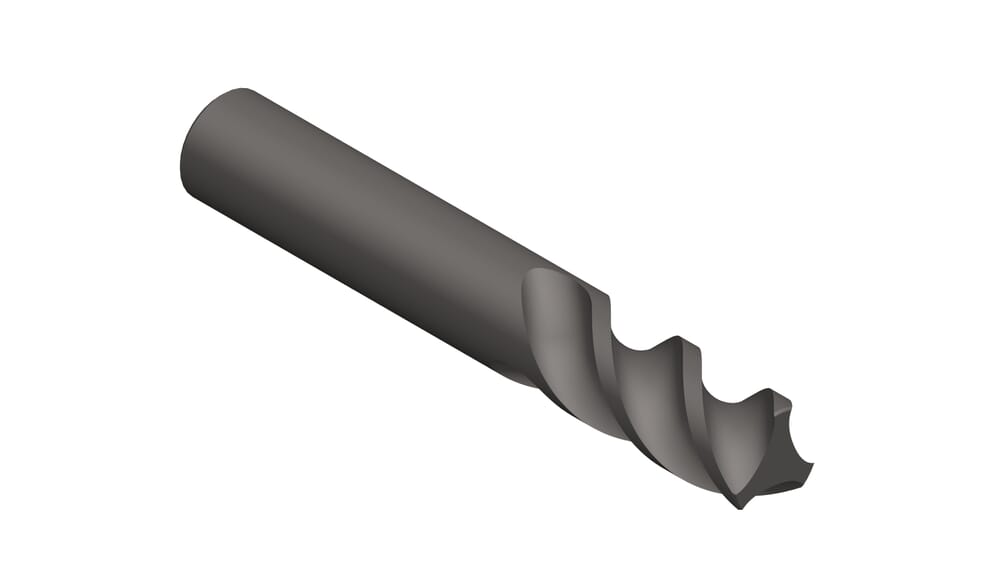

DSF.3.040.50.04 TS3K
DS Milling cutter
Part number DSF30405004TS3K
HORN DS Milling cutter DSF.3.040.50.04 TS3K for Milling
Please note:Technical instructions

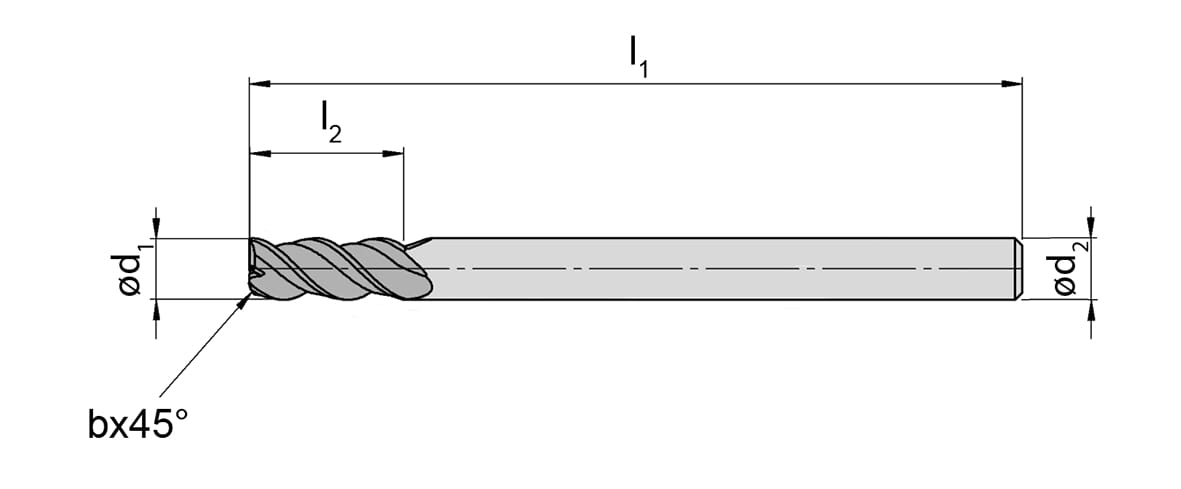

Shank diameter (d2)
4
mm
Cutting diameter (d1)
4
mm
Number of teeth (Z)
3
St.
DIN_CCTMS
ZYL00400105
ISO_CCTMS
ZYL01F4000h$06
Effective cutting length (l2)
12
mm
Corner bevel (45 ° x b) (b)
0.1
Total length (l1)
50
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSF_3_040_50_04.STP | Download |
| Download all files | |
