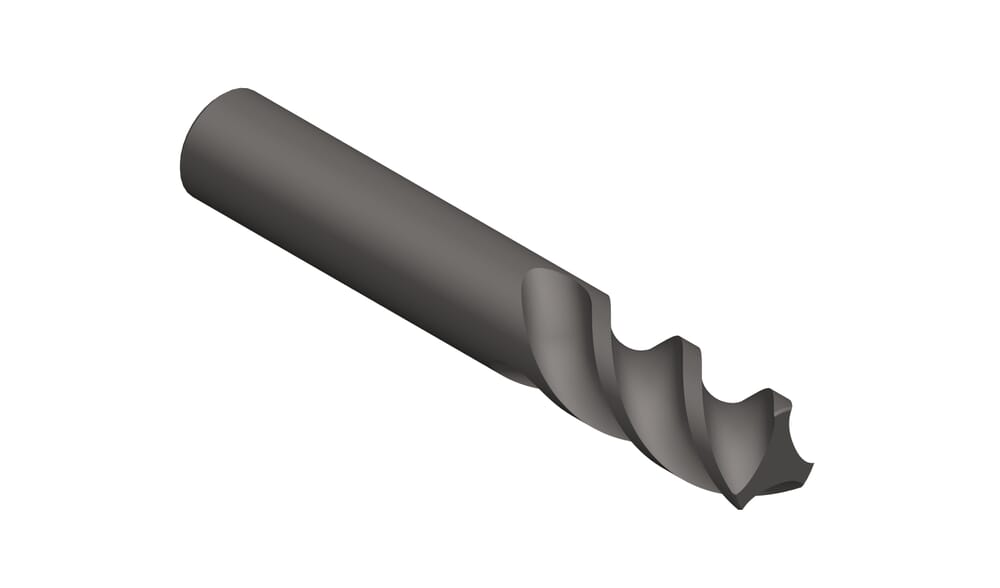

DSF.3.100.69.10 TS3K
DS Milling cutter
Part number DSF31006910TS3K
HORN DS Milling cutter DSF.3.100.69.10 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
10
mm
Cutting diameter (d1)
10
mm
Number of teeth (Z)
3
St.
DIN_CCTMS
ZYL01000105
ISO_CCTMS
ZYL01G1000h$06
Effective cutting length (l2)
22
mm
Corner bevel (45 ° x b) (b)
0.2
Total length (l1)
69
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSF_3_100_69_10.STP | Download |
| Download all files | |
