DSF.4.060.63.06 TS3K

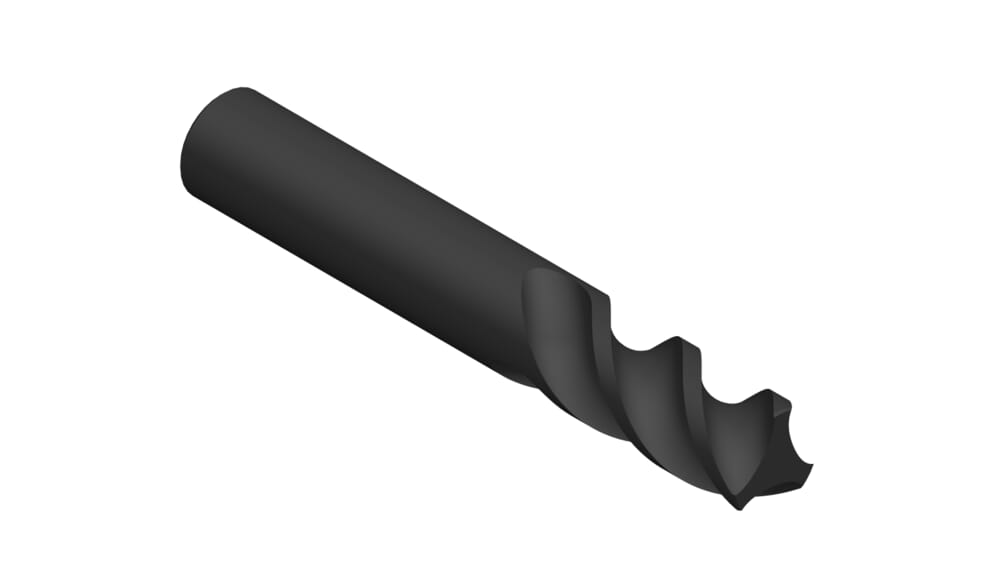

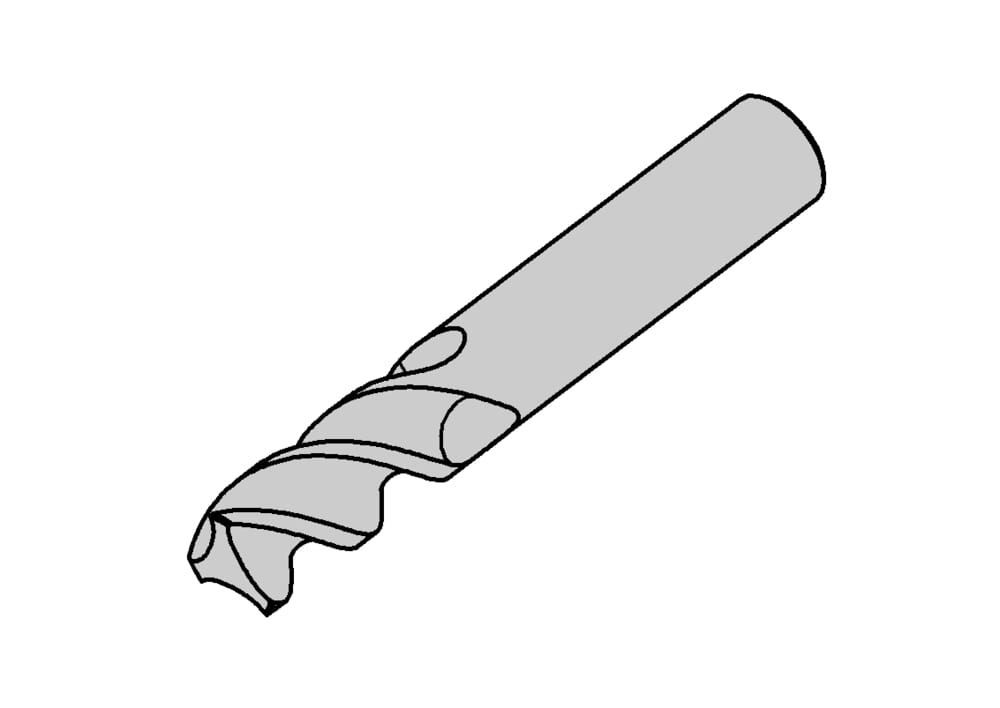

DS Milling cutter Ø 6 , Z=4
Part number DSF40606306TS3K
HORN DS Milling cutter Ø 6 , Z=4 DSF.4.060.63.06 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
6
mm
Cutting diameter (d1)
6
mm
Number of teeth (Z)
4
St.
DIN_CCTMS
ZYL00600105
ISO_CCTMS
ZYL01F6000h$06
Effective cutting length (l2)
16
mm
Corner bevel (45 ° x b) (b)
0.15
Total length (l1)
63
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSF_4_060_63_06.STP | Download |
| Download all files | |
