DSF.4.120.77.12 TS3K

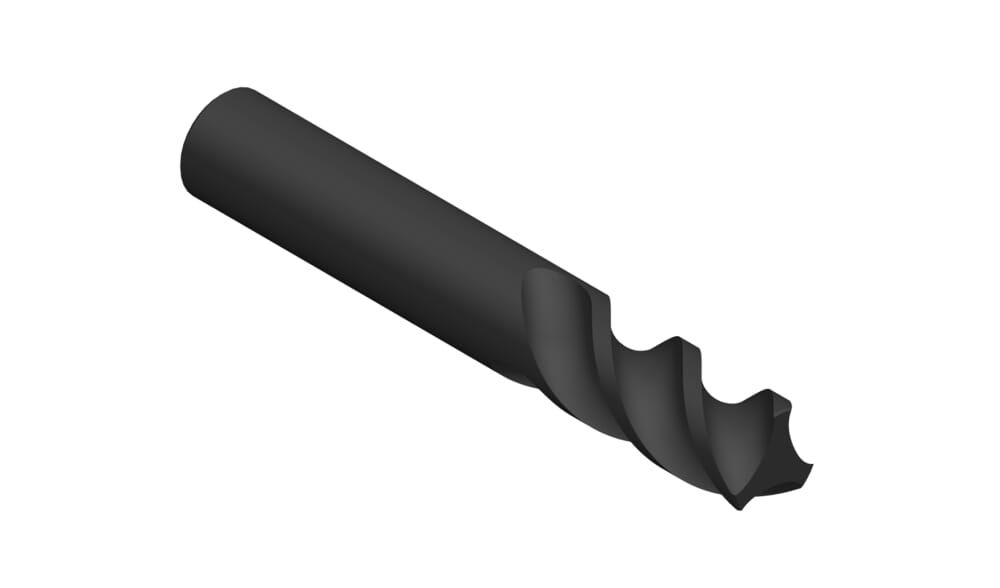

DS Milling cutter Ø 12, Z=4
Part number DSF41207712TS3K
HORN DS Milling cutter Ø 12, Z=4 DSF.4.120.77.12 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
12
mm
Cutting diameter (d1)
12
mm
Number of teeth (Z)
4
St.
DIN_CCTMS
ZYL01200105
ISO_CCTMS
ZYL01G1200h$06
Effective cutting length (l2)
25
mm
Corner bevel (45 ° x b) (b)
0.25
Total length (l1)
77
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSF_4_120_77_12.STP | Download |
| Download all files | |
