DSFD.7.16.24.80.4.16 HD05

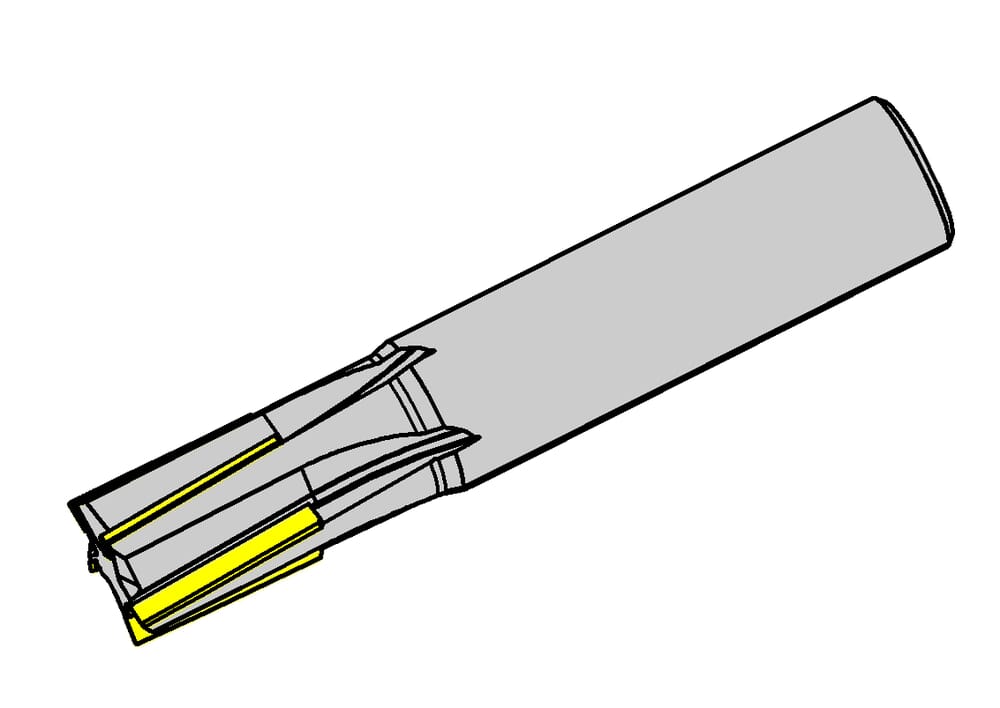

DS Milling cutter
Part number DSFD7162480416HD05
HORN DS Milling cutter DSFD.7.16.24.80.4.16 HD05 for Milling
Please note:Technical instructions

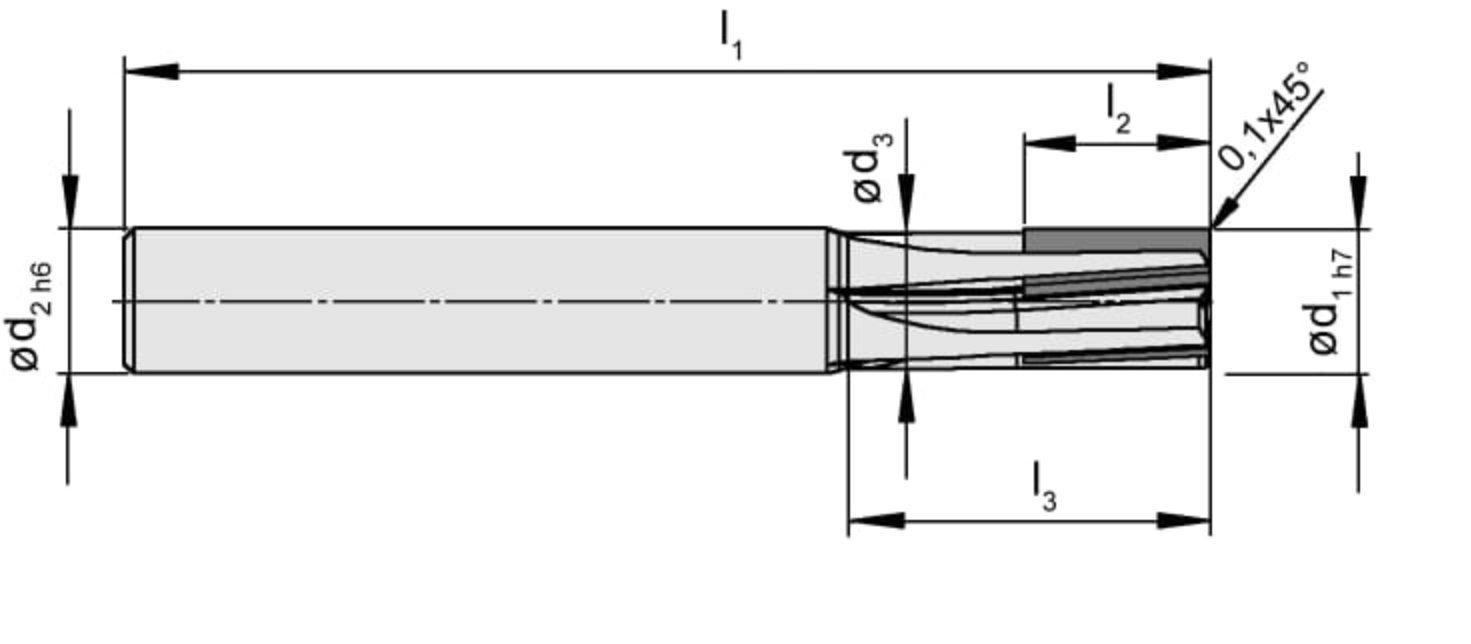

Shank diameter (d2)
16
mm
Neck length (l3)
35
mm
Cutting diameter (d1)
16
mm
Number of teeth (Z)
7
St.
ISO_SSC
ZYL01G1600h$06
DIN_SSC
ZYL01600105
Neck diameter (d3)
15.3
mm
Effective cutting length (l2)
24
mm
Total length (l1)
85
mm
eclass-shortcut
21-18-06-01
