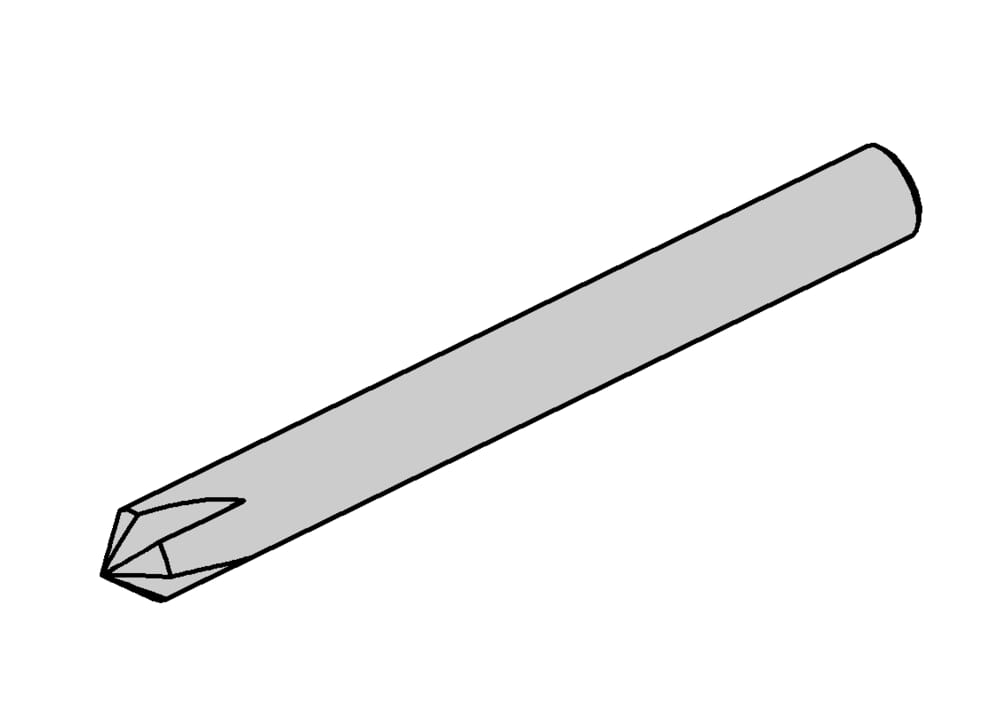

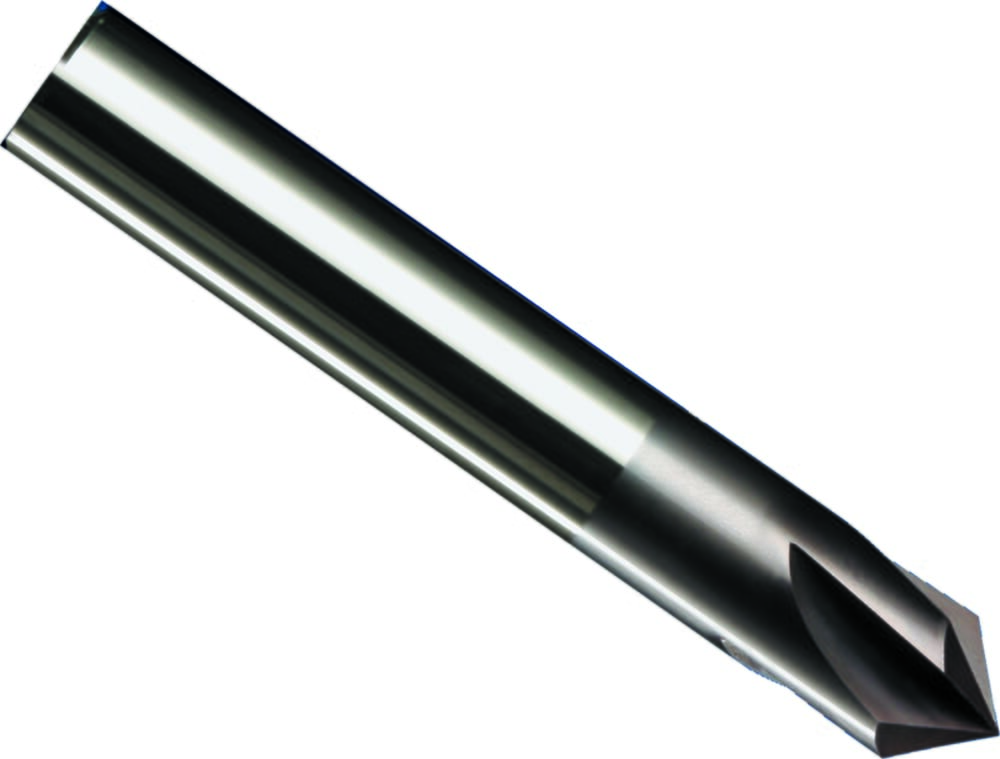

DSFF.4.08.63.08.45 TS3K
DS Milling cutter
Part number DSFF408630845TS3K
HORN DS Milling cutter DSFF.4.08.63.08.45 TS3K for Milling
Please note:Technical instructions

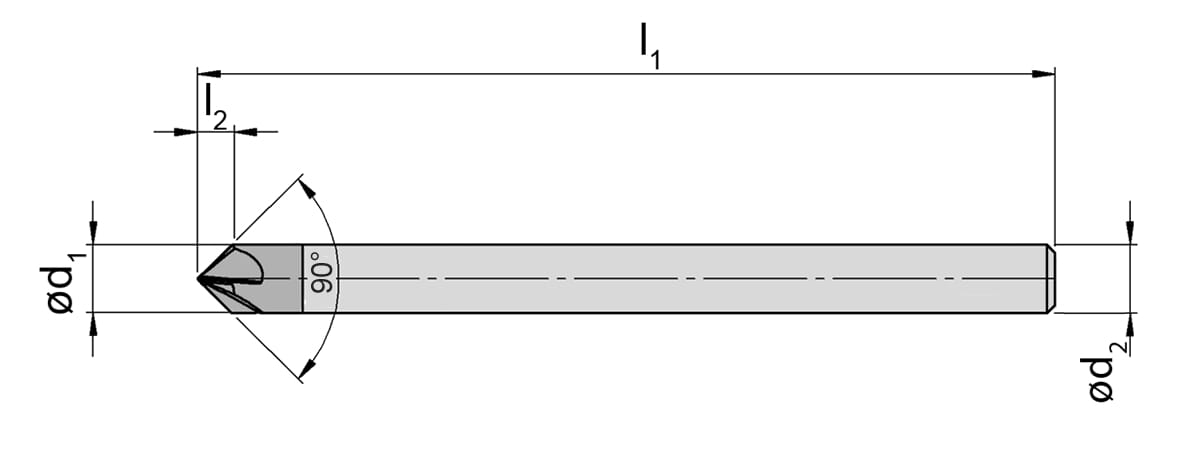

Shank diameter (d2)
8
mm
Cutting diameter (d1)
8
mm
Number of teeth (Z)
4
St.
DIN_CCTMS
ZYL00800105
ISO_CCTMS
ZYL01F8000h$06
Effective cutting length (l2)
4
mm
Total length (l1)
63
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSFF408630845_20240205_194245228.DXF | Download |
| DSFF408630845_20240117_023221501.STP | Download |
| Download all files | |
