DSFF.MD.30.38.3 MD10

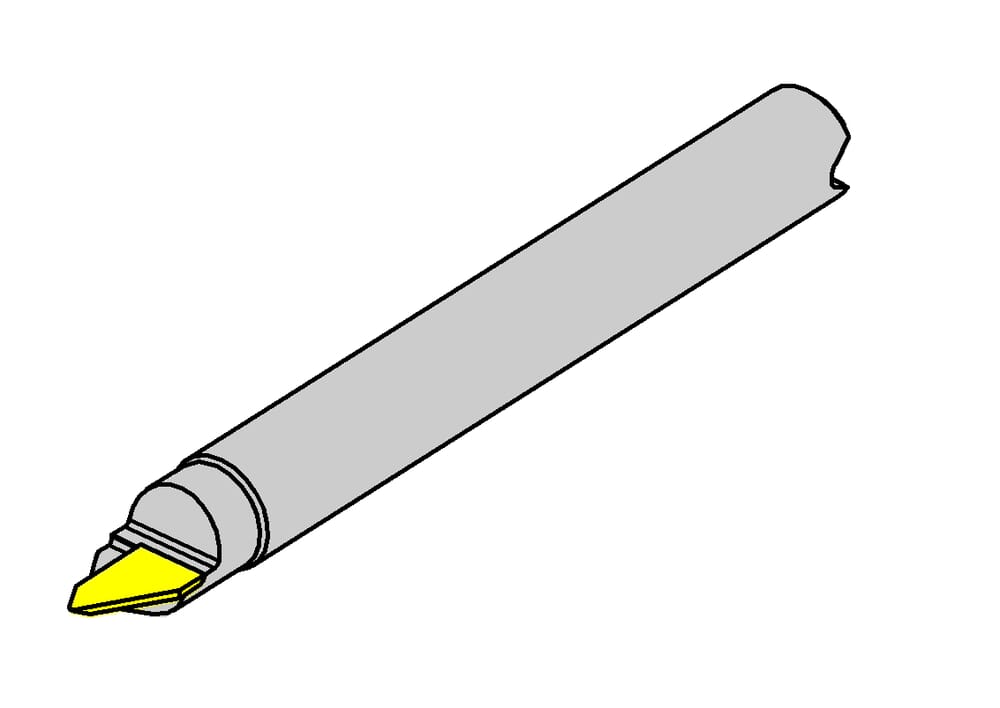

MCD tipped 30° endmill
Part number DSFFMD30383MD10
HORN MCD tipped 30° endmill DSFF.MD.30.38.3 MD10 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

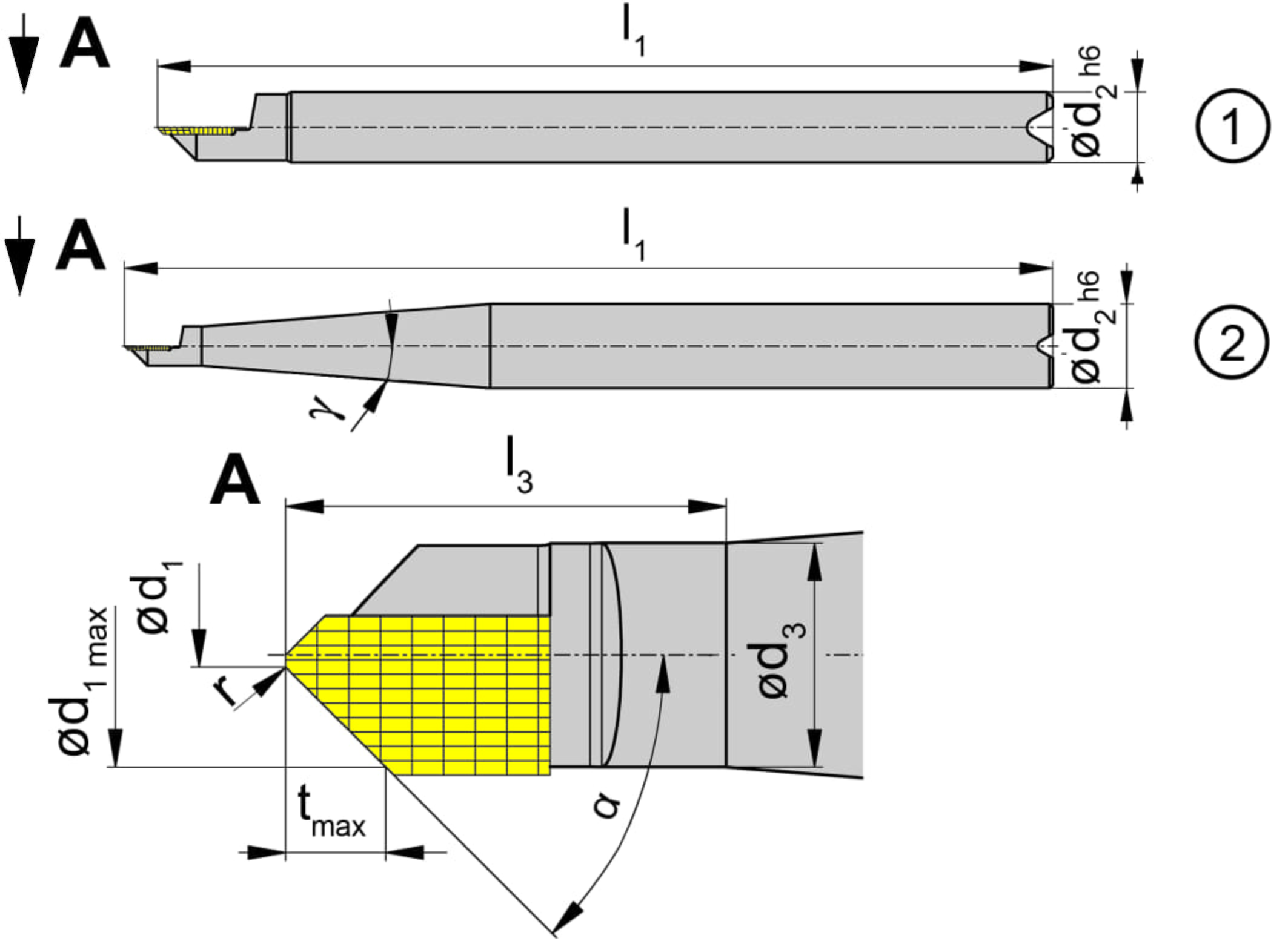

Total length (l1)
38
mm
Type (Ausführung)
1
Radius, full-radius (r)
0.05
mm
Neck diameter (d3)
2.8
mm
Maximum milling depth (tmax)
1.5
mm
DIN_SSC
ZYL00300105
ISO_SSC
ZYL01F3000h$06
Maximum cutting circle diameter (Ds)
2
mm
Free angle (α)
30
°
Cutting diameter (d1)
0.3
mm
Neck length (l3)
5.5
mm
Shank diameter (d2)
3
mm
| Downloads | |
|---|---|
| DSFFMD30383.DXF | Download |
| DSFFMD30383_20230112_210140433.STP | Download |
| Download all files | |
