DSFN.7.12.24.77.0.12 HD05
DS Milling cutter
Part number DSFN7122477012HD05

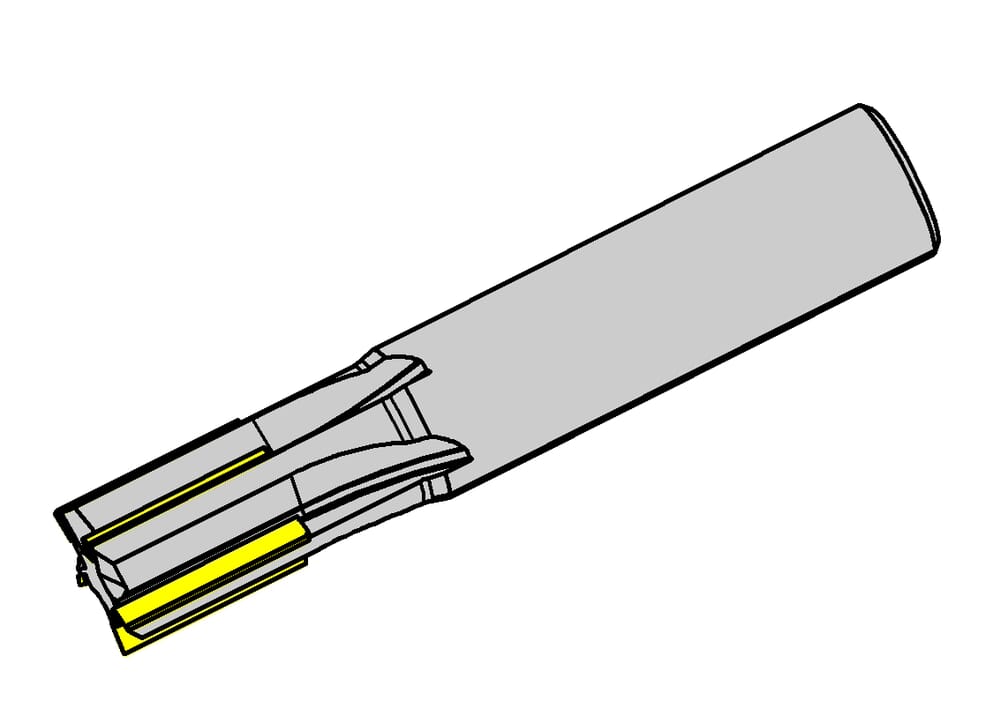

HORN DS Milling cutter DSFN.7.12.24.77.0.12 HD05 for Milling
Please note:Technical instructions

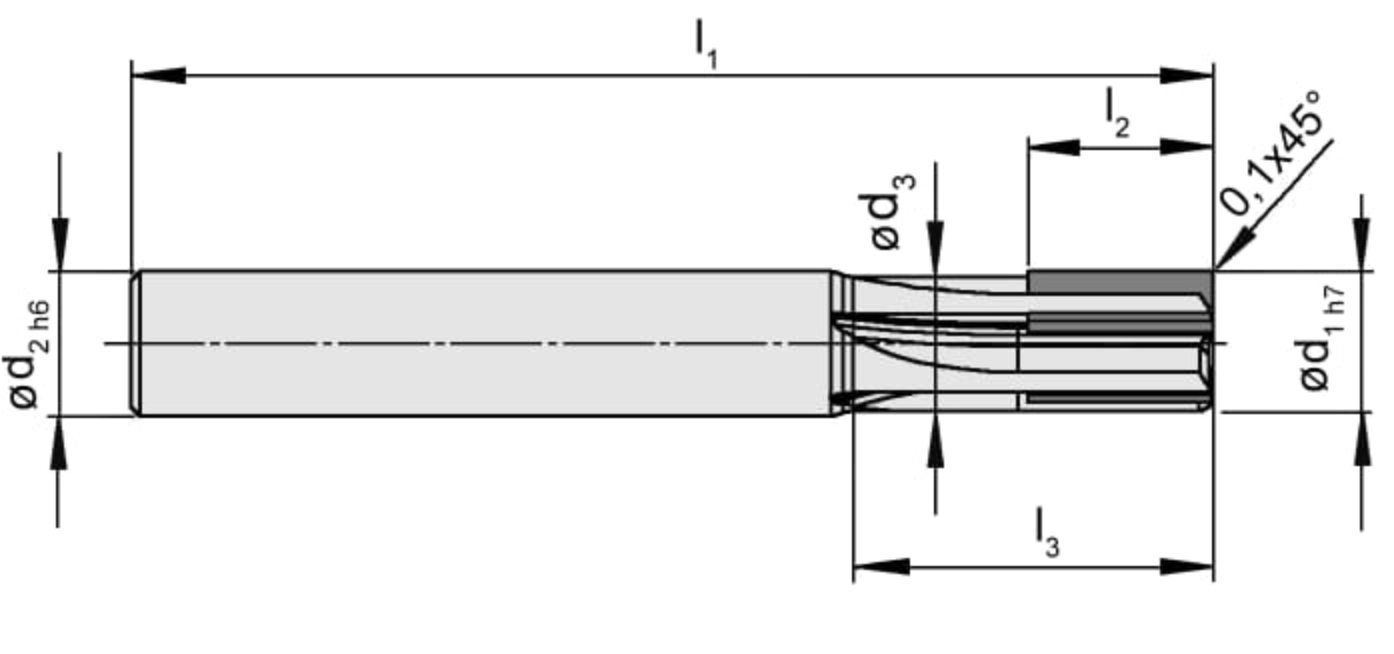

Shank diameter (d2)
12
mm
Neck length (l3)
35
mm
Cutting diameter (d1)
12
mm
Number of teeth (Z)
7
St.
ISO_SSC
ZYL01G1200h$06
DIN_SSC
ZYL01200105
Neck diameter (d3)
11.3
mm
Effective cutting length (l2)
24
mm
Total length (l1)
85
mm
eclass-shortcut
21-18-06-01
