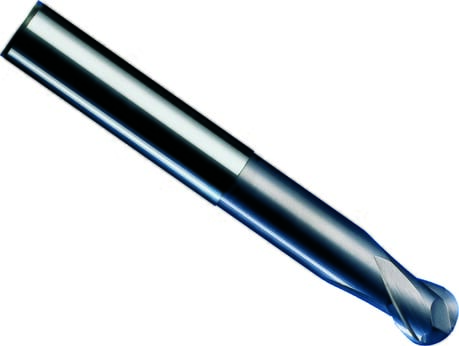

DSK.2.015.063.06 TS3K
DS Milling cutter
Part number DSK201506306TS3K
HORN DS Milling cutter DSK.2.015.063.06 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
2
mm
Radius, full-radius (r)
0.75
mm
Neck diameter (d3)
1.4
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
1.5
mm
Neck length (l3)
4.5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSK201506306_20210629_144551869.DXF | Download |
| DSK201506306_20230116_223230060.STP | Download |
| Download all files | |
