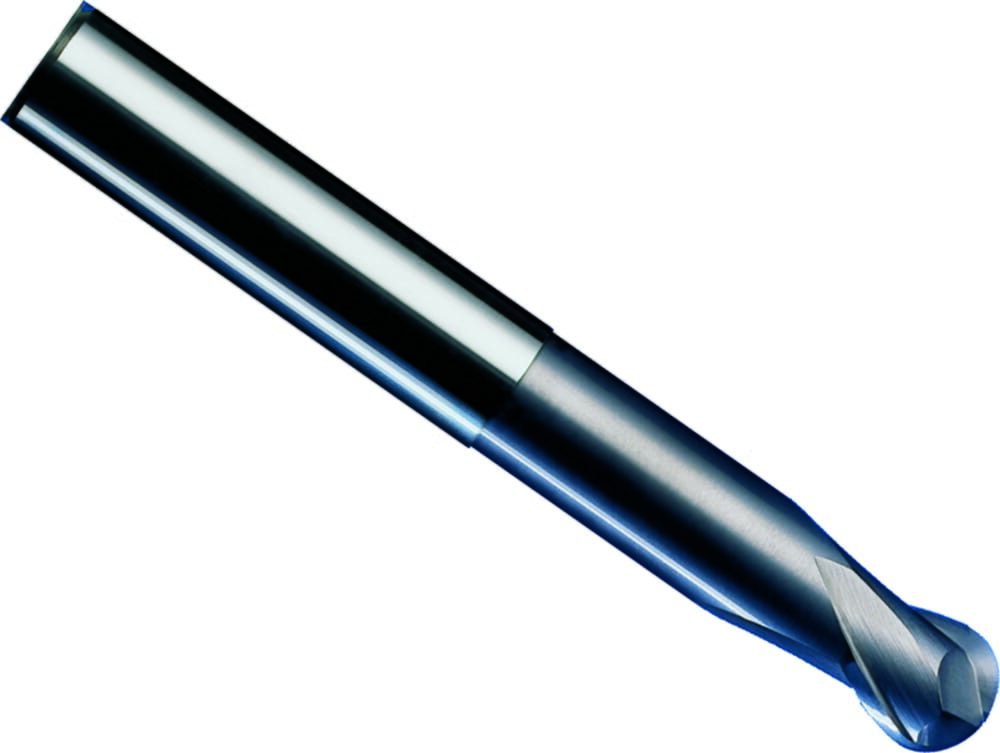

DSK.2.020.077.06 TS3K
DS Milling cutter
Part number DSK202007706TS3K
HORN DS Milling cutter DSK.2.020.077.06 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

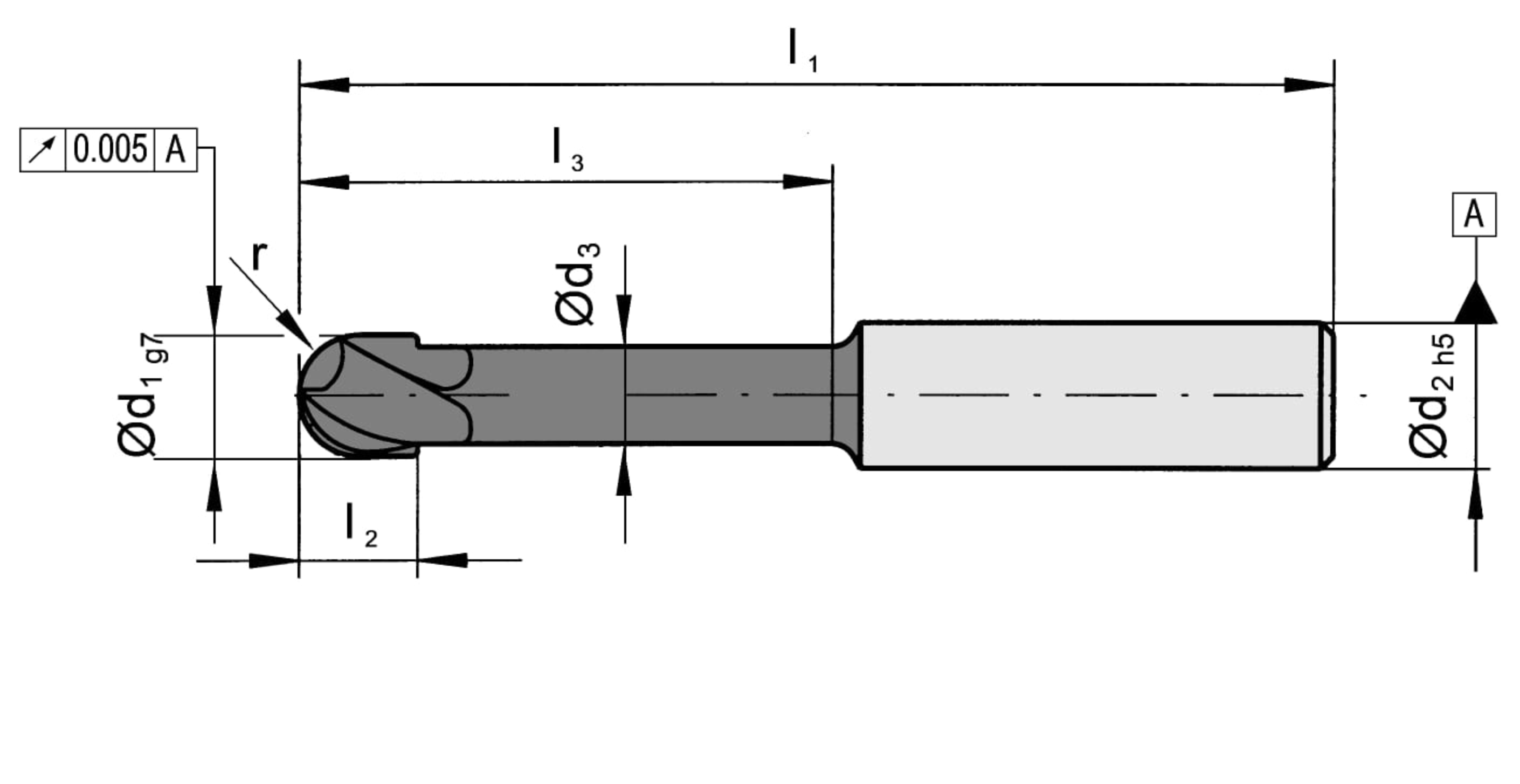

Total length (l1)
77
mm
Effective cutting length (l2)
3
mm
Radius, full-radius (r)
1
mm
Neck diameter (d3)
1.9
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
2
mm
Neck length (l3)
15.5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSK_2_020_077_06_20171121_191023687.STP | Download |
