DSK.2.030.063.06.2 TS3K
DS Milling cutter
Part number DSK2030063062TS3K

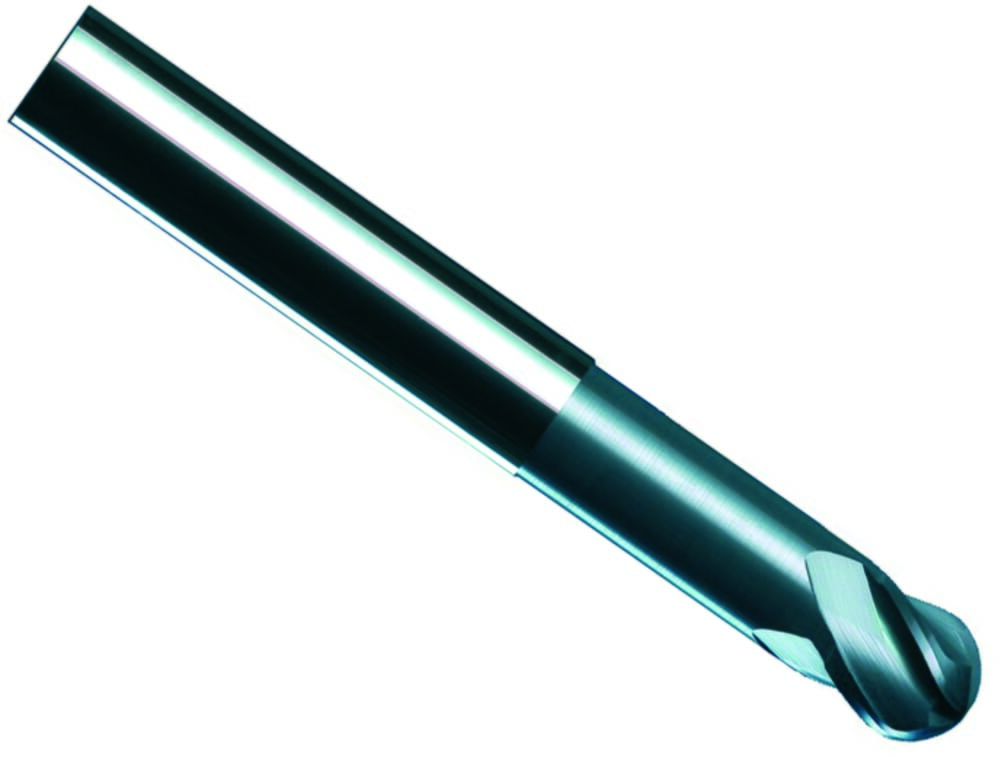

HORN DS Milling cutter DSK.2.030.063.06.2 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

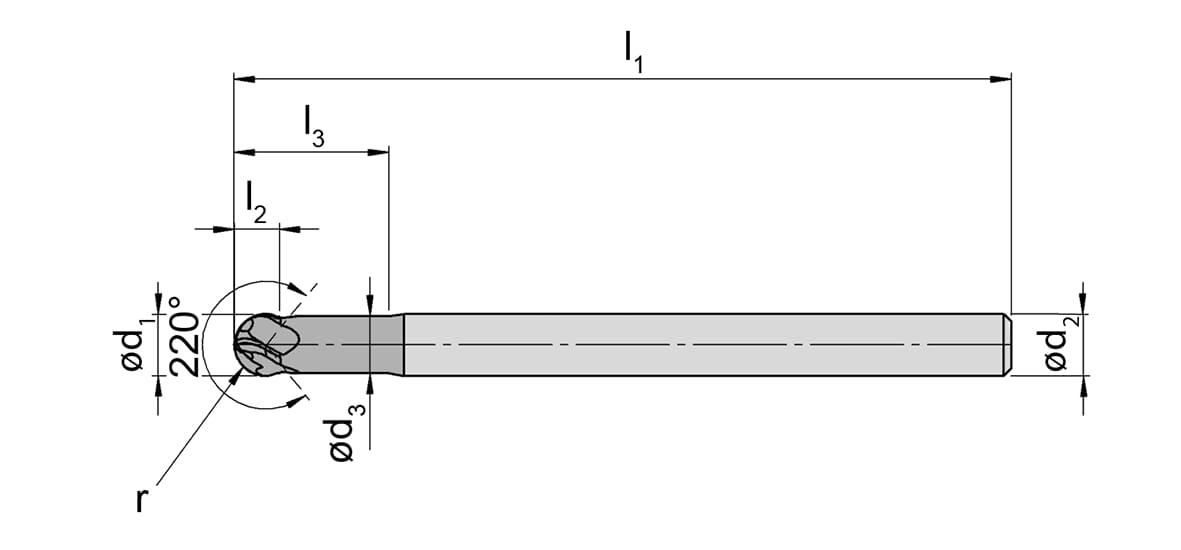

Total length (l1)
63
mm
Effective cutting length (l2)
2.1
mm
Radius, full-radius (r)
1.5
mm
Neck diameter (d3)
2.7
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
3
mm
Neck length (l3)
25.5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSK_2_030_063_06_2.STP | Download |
| Download all files | |
