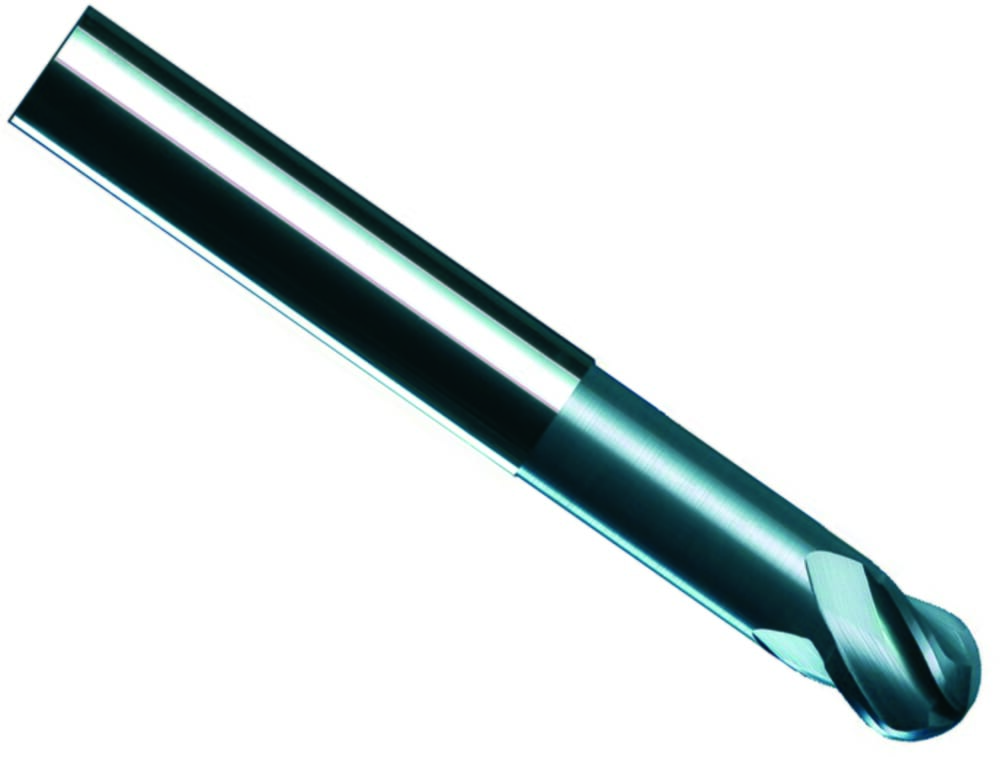

DSK.2.040.063.06.2 TS3H
DS Milling cutter
Part number DSK2040063062TS3H
HORN DS Milling cutter DSK.2.040.063.06.2 TS3H for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
2.8
mm
Radius, full-radius (r)
2
mm
Neck diameter (d3)
3.6
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
4
mm
Neck length (l3)
25.5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSK_2_040_063_06_2.DXF | Download |
| DSK_2_040_063_06_2_20171121_192354381.STP | Download |
| Download all files | |
