DSK.2.050.063.06 TS3H
DS Milling cutter
Part number DSK205006306TS3H

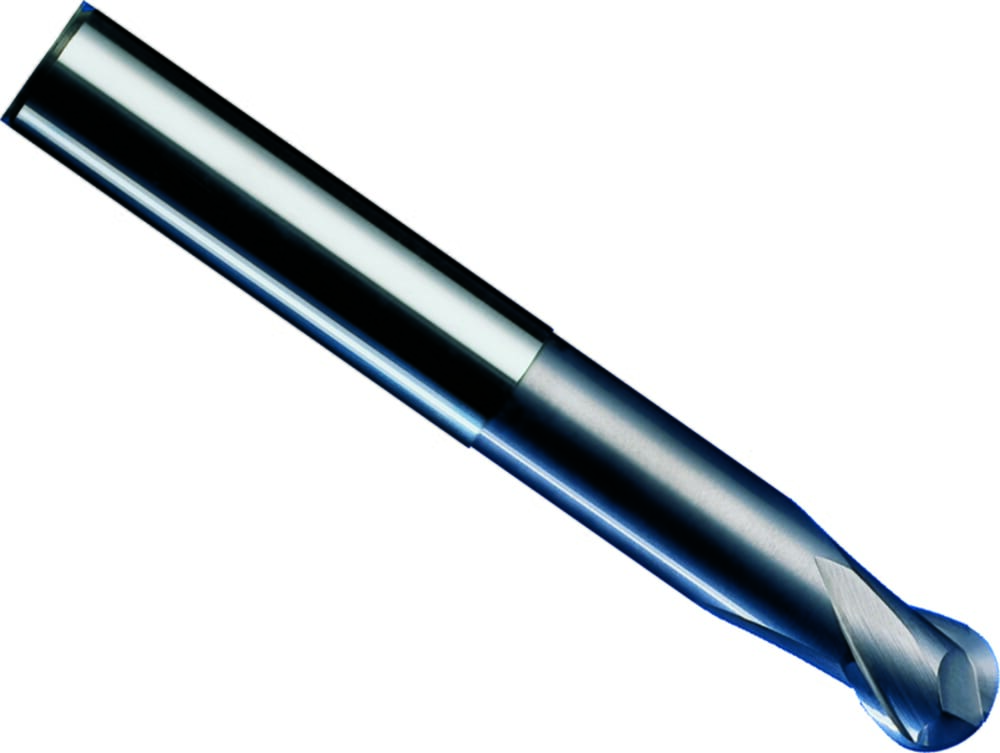

HORN DS Milling cutter DSK.2.050.063.06 TS3H for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
5
mm
Radius, full-radius (r)
2.5
mm
Neck diameter (d3)
4.7
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
5
mm
Neck length (l3)
10.5
mm
Shank diameter (d2)
6
mm
Downloads | |
---|---|
DSK_2_050_063_06_20171121_221827011.STP | Download |
Download all files |
