DSK.2.080.088.08.2 TS3K
DS Milling cutter
Part number DSK2080088082TS3K

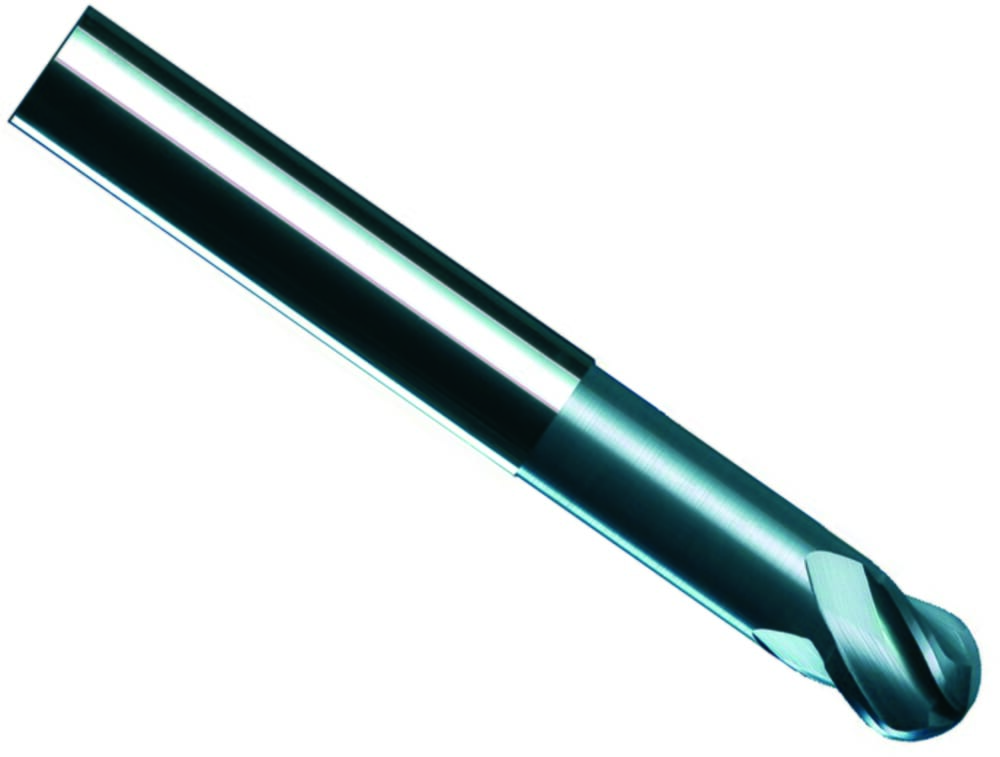

HORN DS Milling cutter DSK.2.080.088.08.2 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
88
mm
Effective cutting length (l2)
5.5
mm
Radius, full-radius (r)
4
mm
Neck diameter (d3)
7.04
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
46.5
mm
Shank diameter (d2)
8
mm
