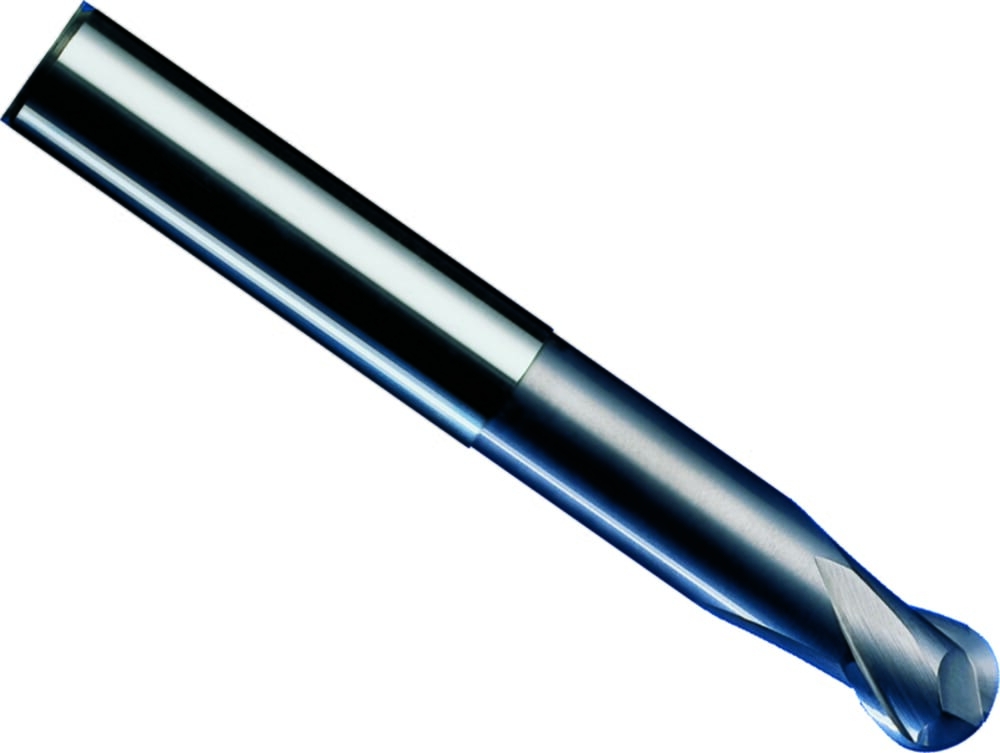

DSK.2.100.077.10 TS3K
DS Milling cutter
Part number DSK210007710TS3K
HORN DS Milling cutter DSK.2.100.077.10 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Effective cutting length (l2)
10
mm
Radius, full-radius (r)
5
mm
Neck diameter (d3)
9.4
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
35.5
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSK_2_100_077_10.STP | Download |
| Download all files | |
