DSK.2.100.101.10.2 TS3H

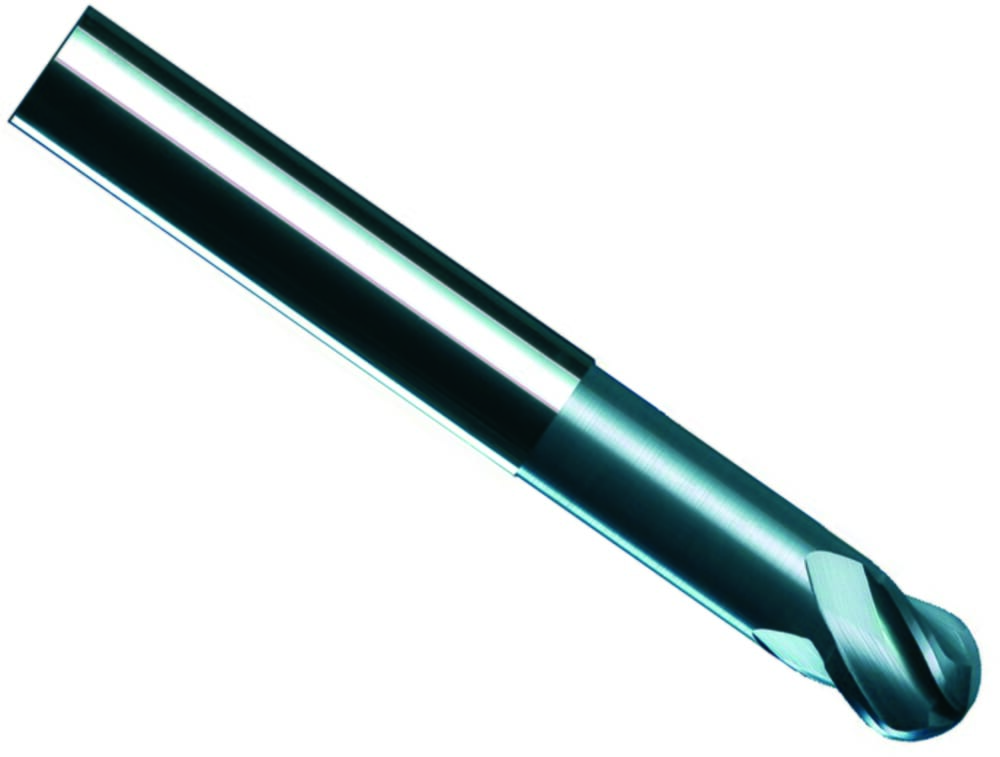

DS Milling cutter
Part number DSK2100101102TS3H
HORN DS Milling cutter DSK.2.100.101.10.2 TS3H for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
101
mm
Effective cutting length (l2)
6.9
mm
Radius, full-radius (r)
5
mm
Neck diameter (d3)
8.8
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
55.5
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSK_2_100_101_10_2_20171121_204403850.STP | Download |
| Download all files | |
