DSK.2.120.119.12.2 TS3K
DS Milling cutter
Part number DSK2120119122TS3K

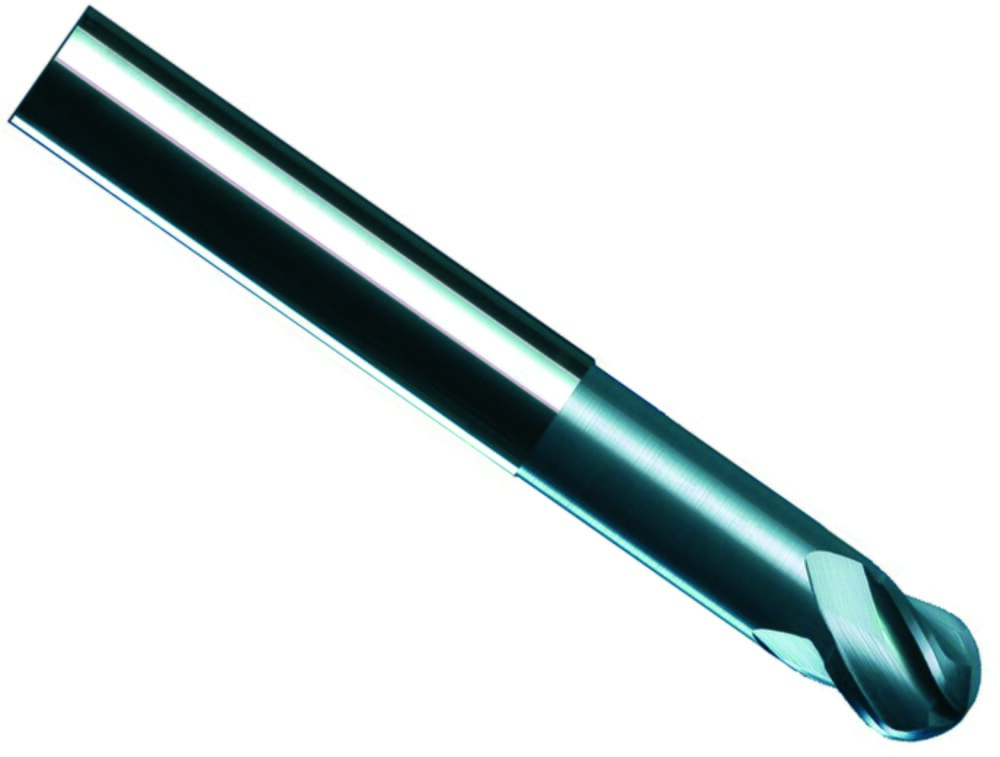

HORN DS Milling cutter DSK.2.120.119.12.2 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
119
mm
Effective cutting length (l2)
8.2
mm
Radius, full-radius (r)
6
mm
Neck diameter (d3)
10.56
mm
ISO_CCTMS
ZYL01G1200h$06
DIN_CCTMS
ZYL01200105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
12
mm
Neck length (l3)
72.5
mm
Shank diameter (d2)
12
mm
| Downloads | |
|---|---|
| DSK_2_120_119_12_2_20171121_221036474.STP | Download |
| Download all files | |
