DSK.4.060.063.06 TS3K
DS Milling cutter
Part number DSK406006306TS3K

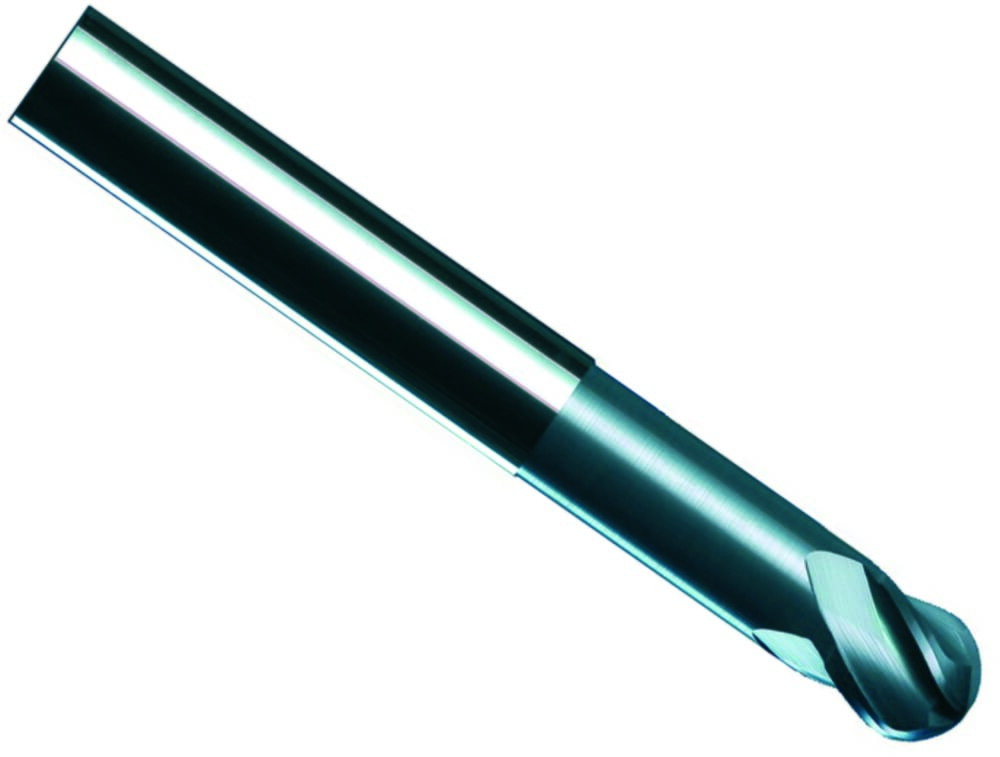

HORN DS Milling cutter DSK.4.060.063.06 TS3K for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
6
mm
Type (Ausführung)
A
Radius, full-radius (r)
3
mm
Neck diameter (d3)
5.6
mm
ISO_CCTMS
ZYL01F6000h$06
Number of teeth (Z)
4
St.
Cutting diameter (d1)
6
mm
Neck length (l3)
25.5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSK_4_060_063_06_20171121_210634773.STP | Download |
| Download all files | |
