DSK.4.100.077.10 TS3K
DS Milling cutter
Part number DSK410007710TS3K

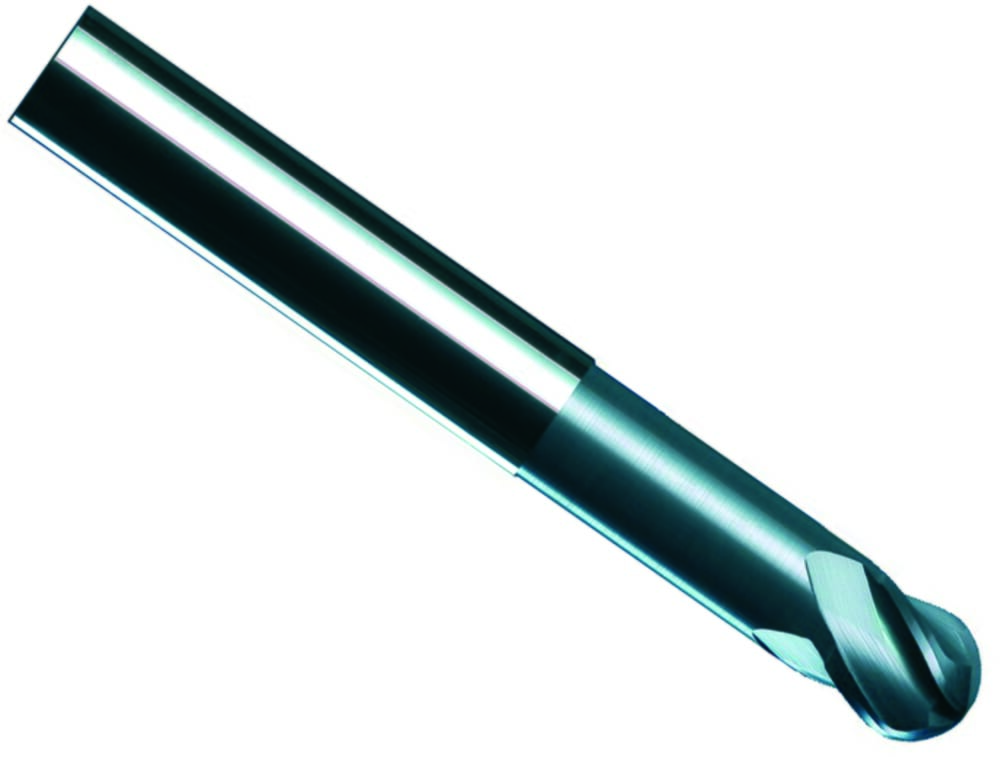

HORN DS Milling cutter DSK.4.100.077.10 TS3K for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01000105
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Effective cutting length (l2)
10
mm
Type (Ausführung)
A
Radius, full-radius (r)
5
mm
Neck diameter (d3)
9.4
mm
ISO_CCTMS
ZYL01G1000h$06
Number of teeth (Z)
4
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
30.5
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSK_4_100_077_10_20171121_210354625.STP | Download |
| Download all files | |
