DSKA.2.120.050 MG3K

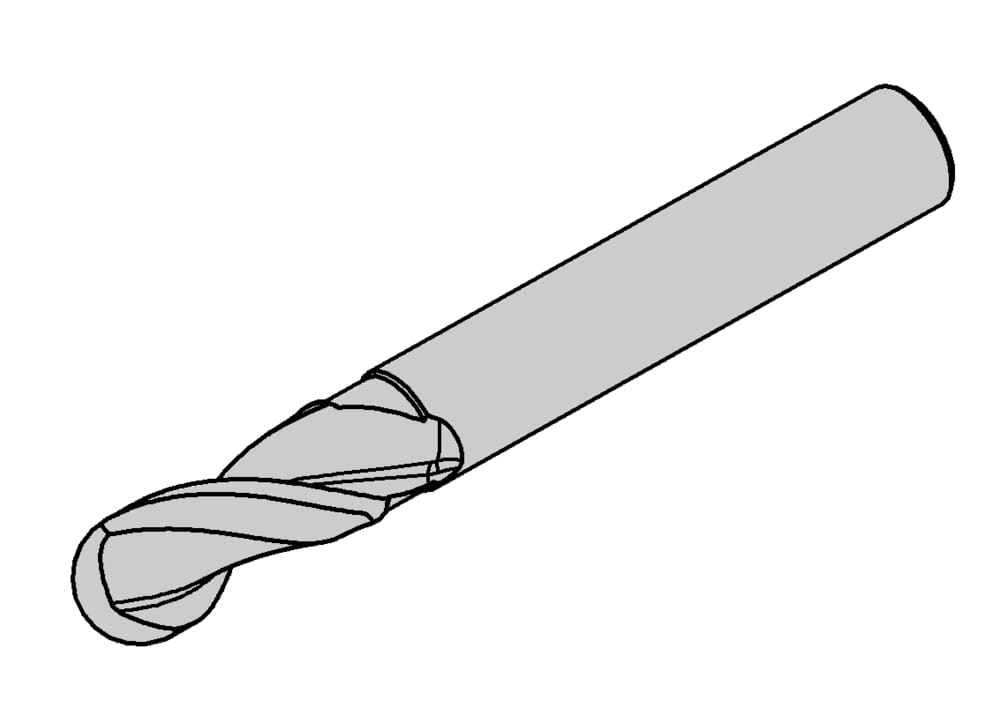

DS endmill
Part number DSKA2120050MG3K
HORN DS endmill DSKA.2.120.050 MG3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

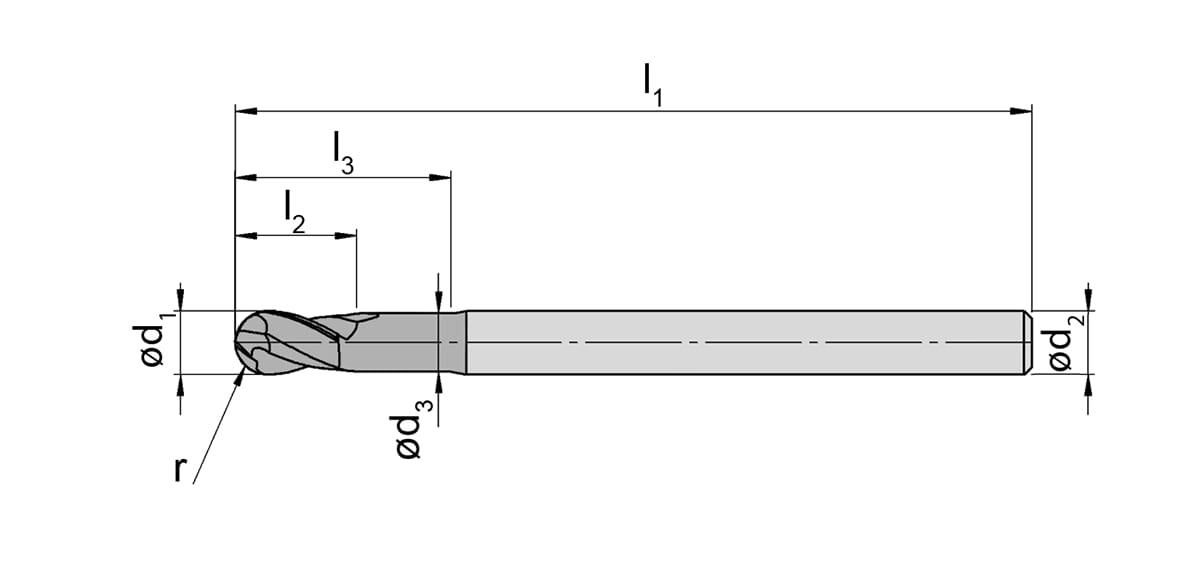

Total length (l1)
108
mm
Effective cutting length (l2)
30
mm
Radius, full-radius (r)
6
mm
Neck diameter (d3)
11.5
mm
ISO_CCTMS
ZYL01G1200h$06
DIN_CCTMS
ZYL01200105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
12
mm
Neck length (l3)
60
mm
Shank diameter (d2)
12
mm
