DSKC.2.020.077.06 TSCC

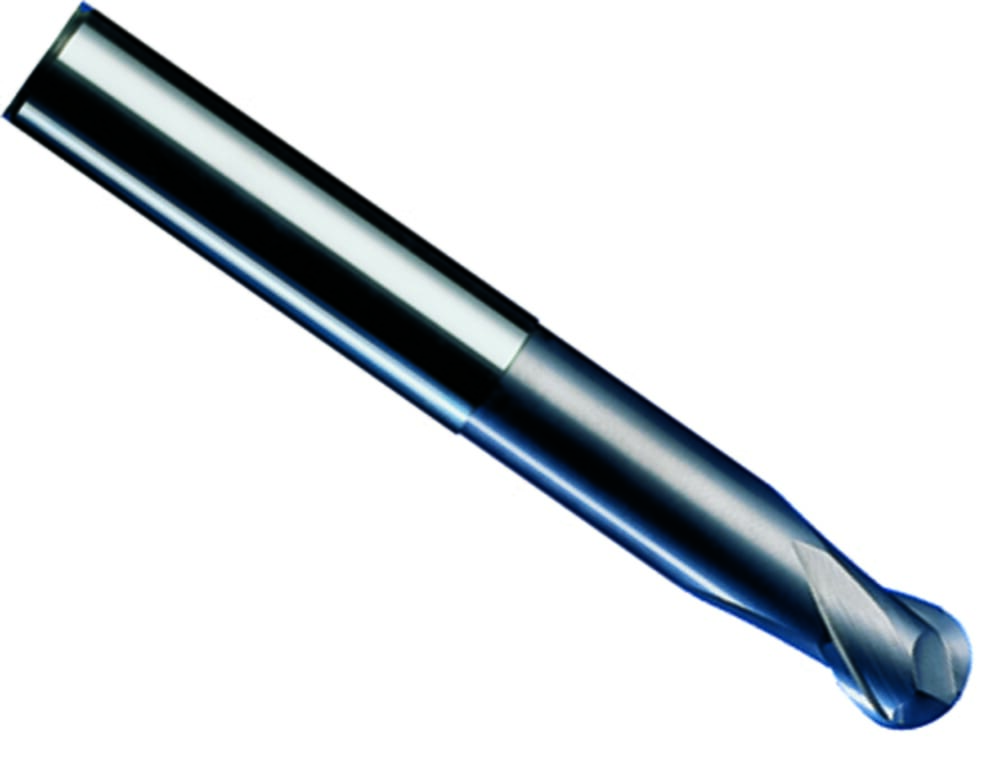

DS Milling cutter
Part number DSKC202007706TSCC
HORN DS Milling cutter DSKC.2.020.077.06 TSCC for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Effective cutting length (l2)
3
mm
Radius, full-radius (r)
1
mm
Neck diameter (d3)
1.9
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
2
St.
Cutting diameter (d1)
2
mm
Neck length (l3)
8
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSKC202007706_20210629_145748213.DXF | Download |
| DSKC202007706_20210630_111454907.STP | Download |
| Download all files | |
