DSKC.3.040.077.06 TSCC
DS Milling cutter
Part number DSKC304007706TSCC

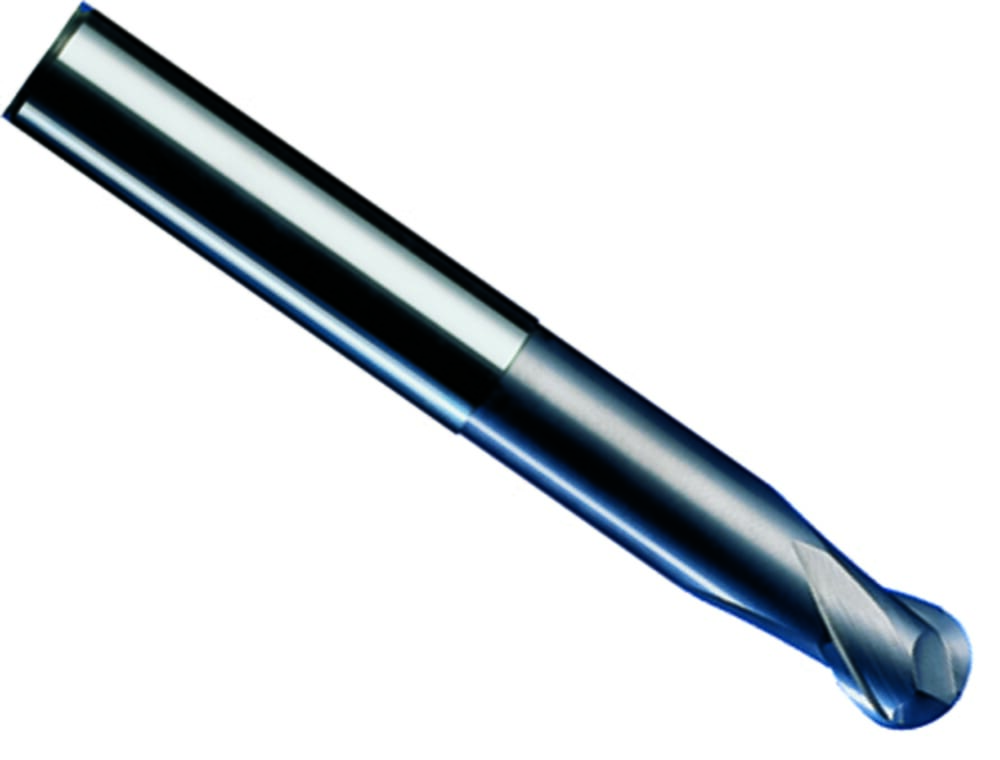

HORN DS Milling cutter DSKC.3.040.077.06 TSCC for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Effective cutting length (l2)
5
mm
Radius, full-radius (r)
2
mm
Neck diameter (d3)
3.8
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
3
St.
Cutting diameter (d1)
4
mm
Neck length (l3)
16
mm
Shank diameter (d2)
6
mm
