DSKC.4.050.063.06.2 TSCC

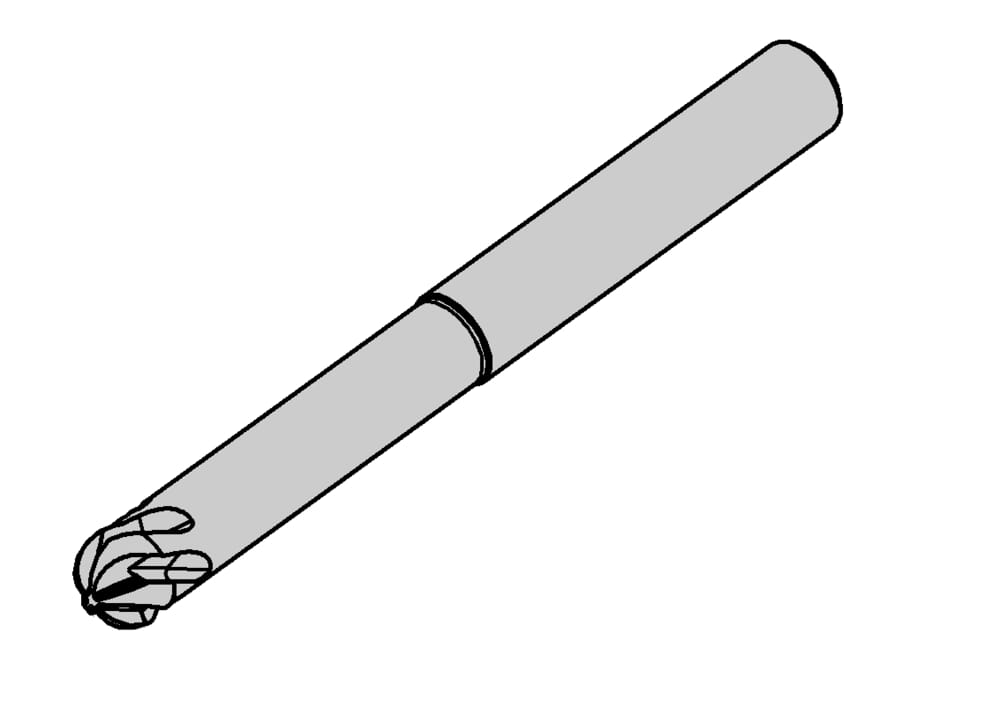

DS Milling cutter
Part number DSKC4050063062TSCC
HORN DS Milling cutter DSKC.4.050.063.06.2 TSCC for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

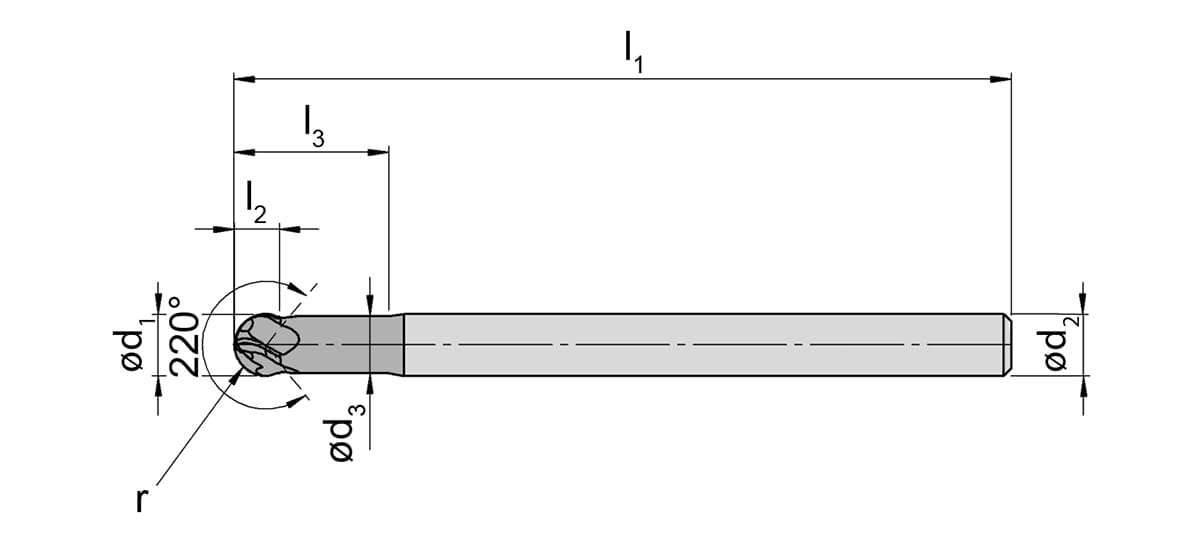

Total length (l1)
63
mm
Effective cutting length (l2)
3.3
mm
Radius, full-radius (r)
2.5
mm
Neck diameter (d3)
4.7
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
5
mm
Neck length (l3)
25
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSKC_4_050_063_06_2.STP | Download |
| DSKC405006306_20250205_163706442.DXF | Download |
| Download all files | |
