DSKC.5.080.063.08 TSCC

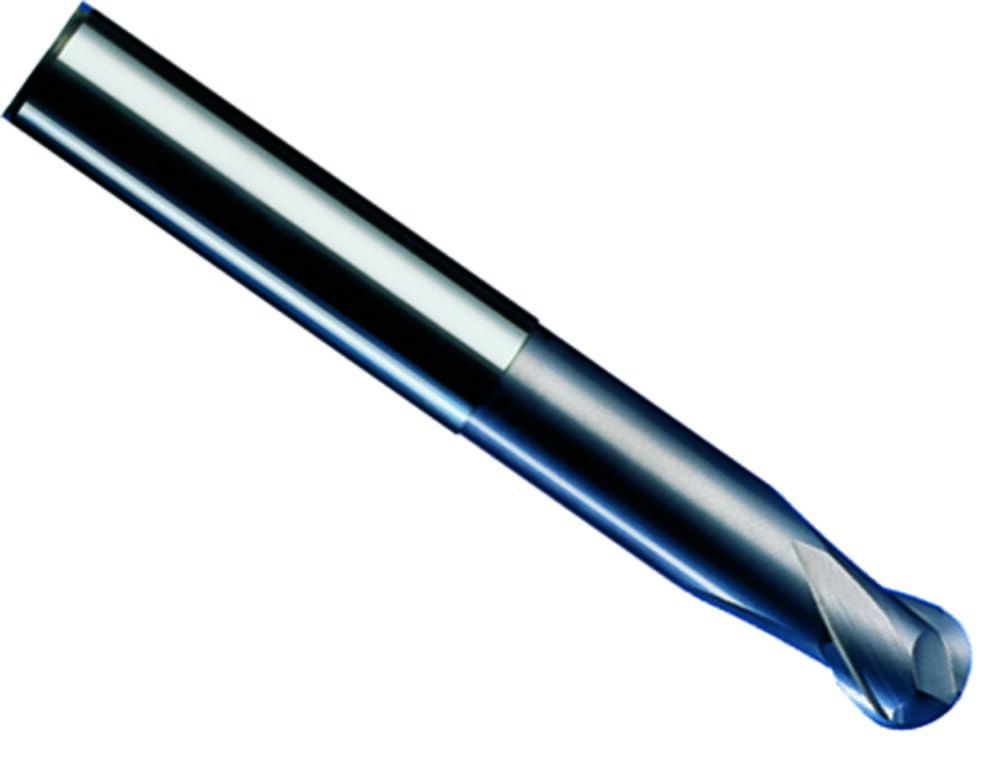

DS Milling cutter
Part number DSKC508006308TSCC
HORN DS Milling cutter DSKC.5.080.063.08 TSCC for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
8
mm
Radius, full-radius (r)
4
mm
Neck diameter (d3)
7.4
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
Number of teeth (Z)
5
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
20
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DSKC508006308_20211215_152627695.DXF | Download |
| DSKC508006308_20230112_203402334.STP | Download |
| Download all files | |
