DSKC.5.100.101.10.2 TSCC

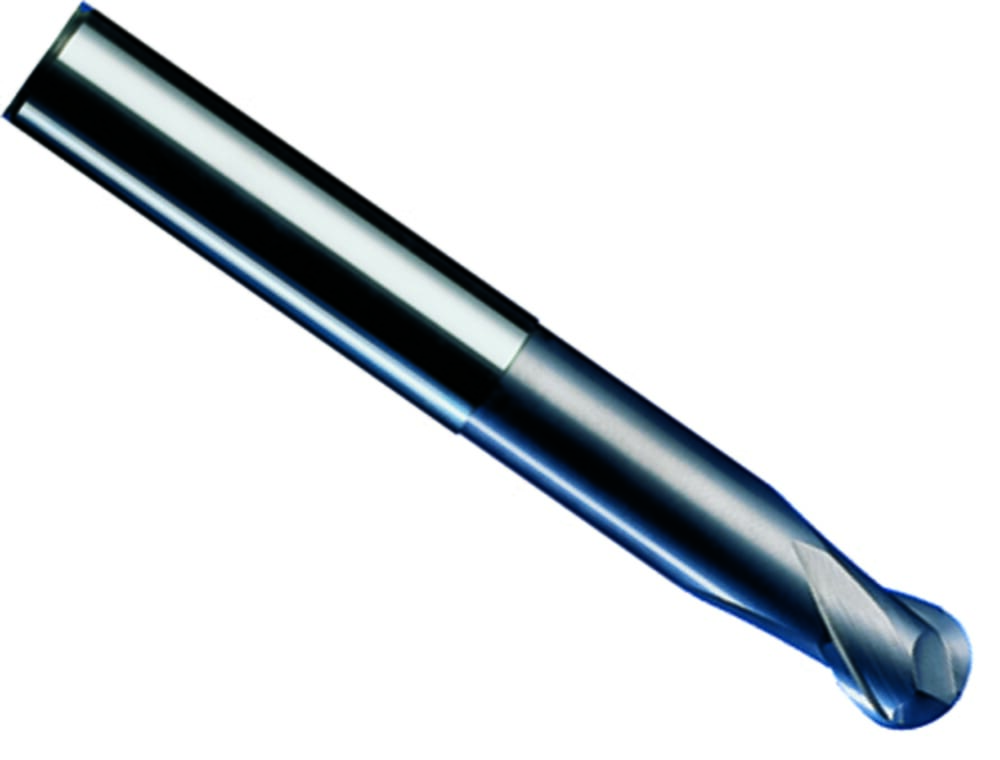

DS Milling cutter
Part number DSKC5100101102TSCC
HORN DS Milling cutter DSKC.5.100.101.10.2 TSCC for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
101
mm
Effective cutting length (l2)
6.7
mm
Radius, full-radius (r)
5
mm
Neck diameter (d3)
9.4
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
Number of teeth (Z)
5
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
50
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSKC5100101102_20211215_152554257.DXF | Download |
| DSKC5100101102_20230112_203425638.STP | Download |
| Download all files | |
