DSKH.4.080.070 TS3E
DS endmill
Part number DSKH4080070TS3E

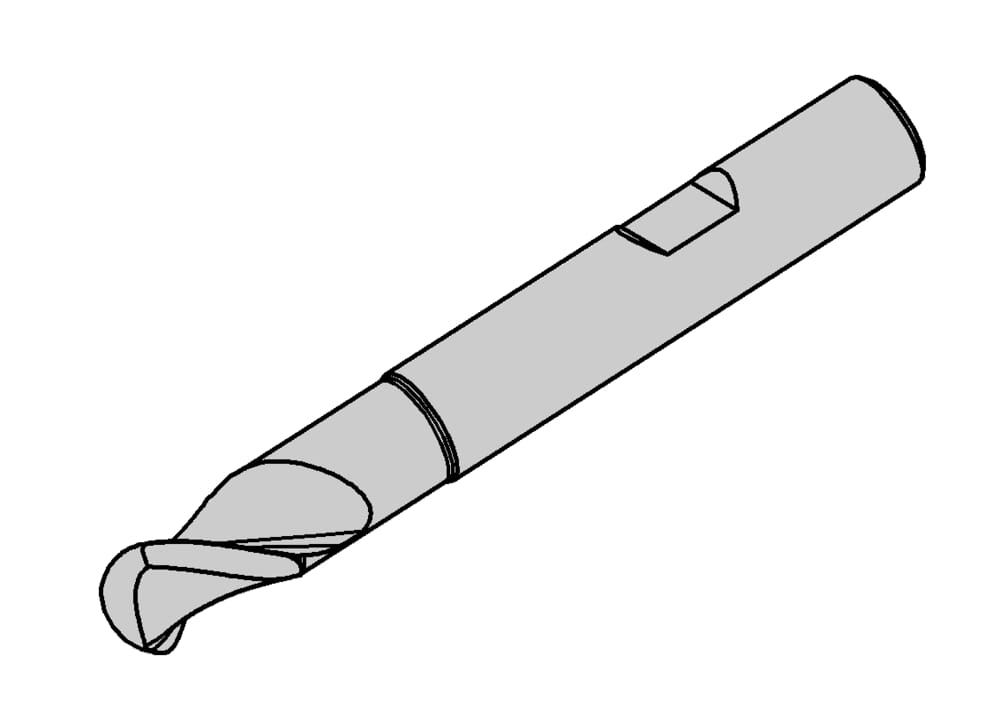

HORN DS endmill DSKH.4.080.070 TS3E for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

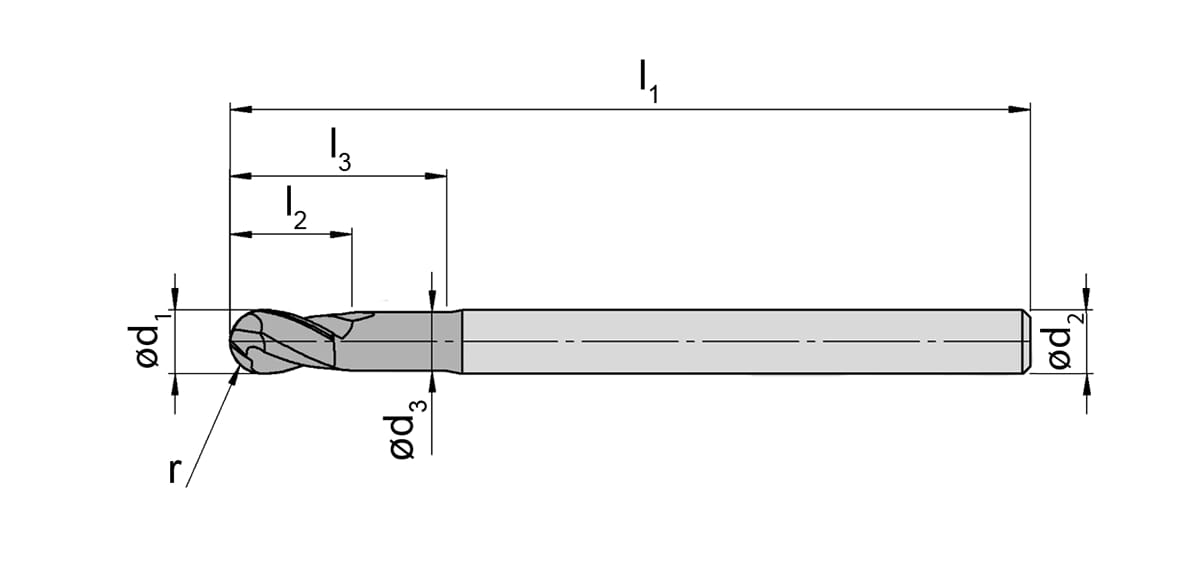

Total length (l1)
100
mm
Effective cutting length (l2)
12
mm
Radius, full-radius (r)
4
mm
Neck diameter (d3)
7.6
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
Number of teeth (Z)
4
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
56
mm
Shank diameter (d2)
8
mm
