DSKL.2.160.149.16 TS3H
DS Milling cutter
Part number DSKL216014916TS3H

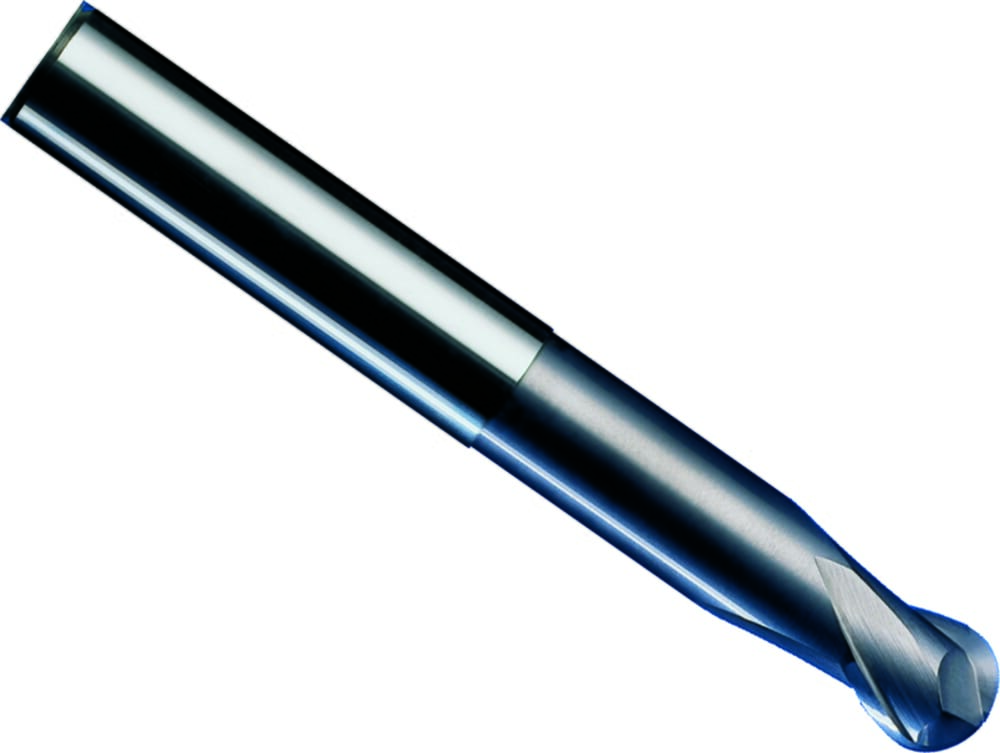

HORN DS Milling cutter DSKL.2.160.149.16 TS3H for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01600105
eclass-shortcut
21-18-06-01

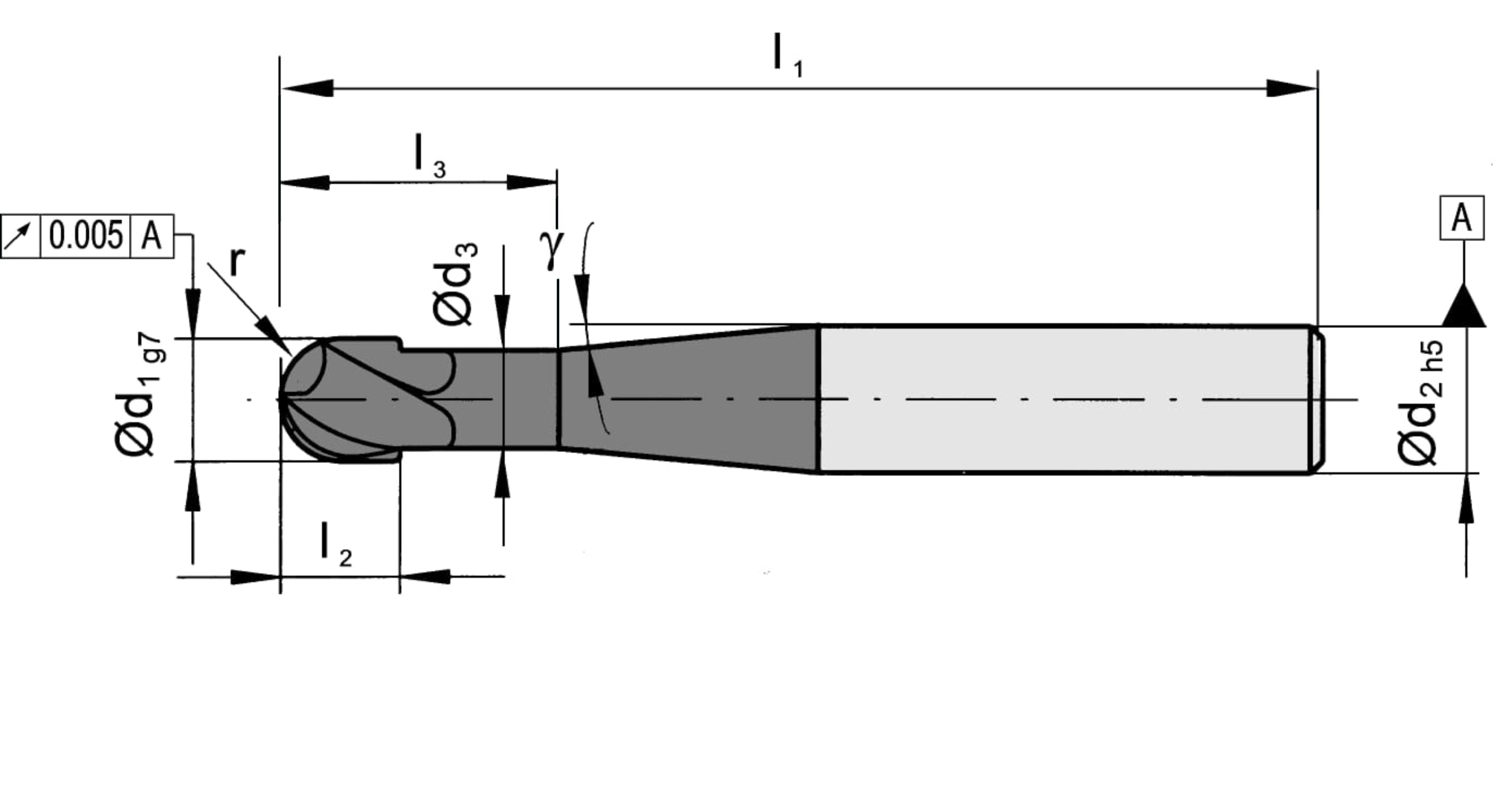

Shank tapering angle γ (γ)
2
°
Total length (l1)
149
mm
Effective cutting length (l2)
20
mm
Radius, full-radius (r)
8
mm
Neck diameter (d3)
15.4
mm
ISO_CCTMS
ZYL01G1600h$06
Number of teeth (Z)
2
St.
Cutting diameter (d1)
16
mm
Neck length (l3)
100
mm
Shank diameter (d2)
16
mm
| Downloads | |
|---|---|
| DSKL_2_160_149_16.STP | Download |
| Download all files | |
