DSK.MD.1000.90.10 MD10

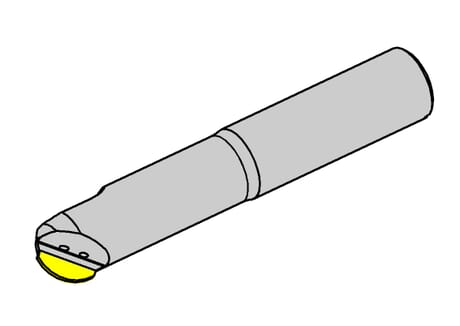

Toolholder MKD
Part number DSKMD10009010MD10
HORN Toolholder MKD DSK.MD.1000.90.10 MD10 for Milling
Please note:Technical instructions
DIN_SSC
ZYL01000115
eclass-shortcut
21-18-06-01

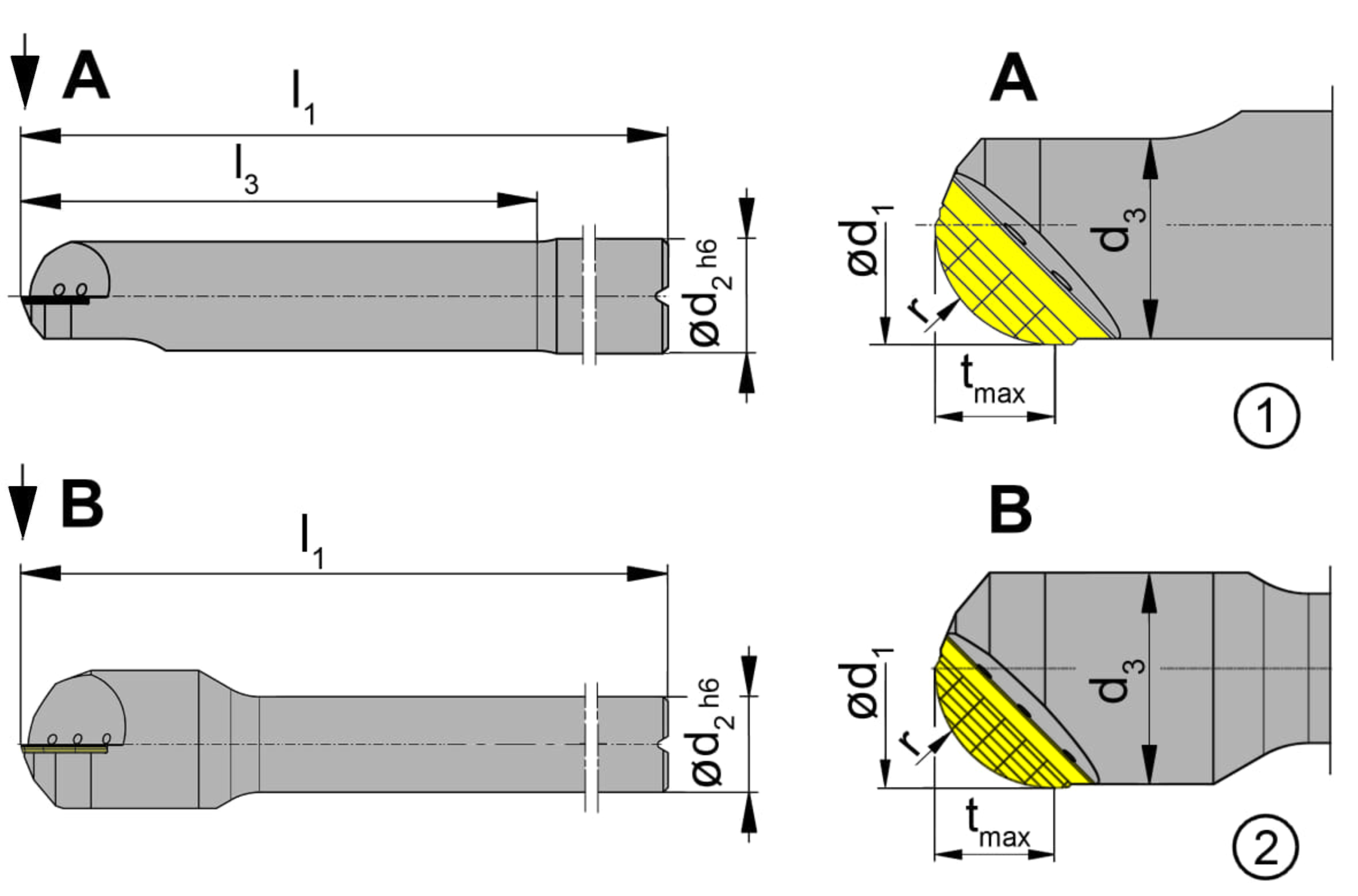

Total length (l1)
90
mm
cutting-length-effective-met
5
mm
Type (Ausführung)
1
Radius, full-radius (r)
5
mm
Neck diameter (d3)
9.5
mm
Maximum milling depth (tmax)
5
mm
ISO_SSC
ZYL01G1000h$06
Cutting diameter (d1)
10
mm
Neck length (l3)
45
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSKMD10009010.DXF | Download |
| DSKMD10009010_20210630_114848687.STP | Download |
| Download all files | |
