DSKM.HM.100.35.500 HD03
DS Milling cutter
Part number DSKMHM10035500HD03
HORN DS Milling cutter DSKM.HM.100.35.500 HD03 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

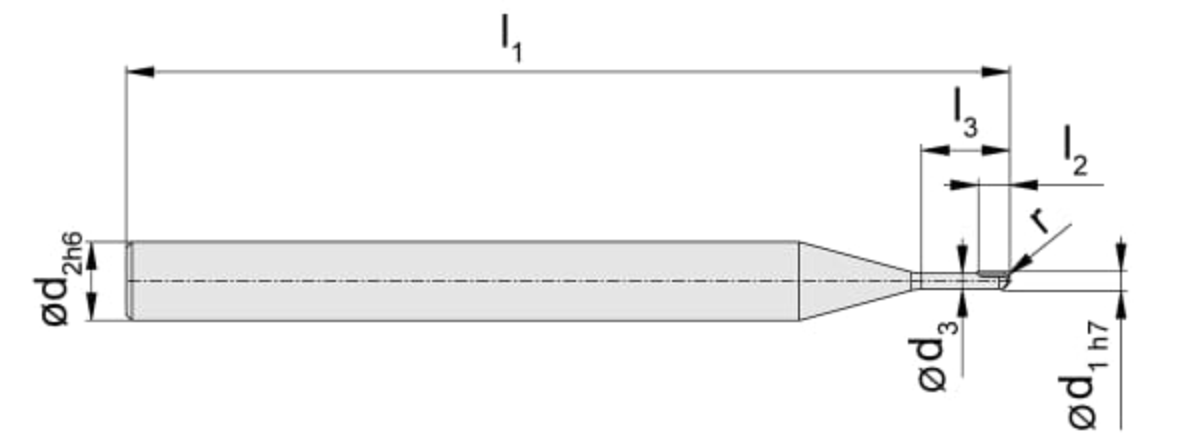

Total length (l1)
45
mm
Effective cutting length (l2)
1.5
mm
Radius, full-radius (r)
0.5
mm
Neck diameter (d3)
0.8
mm
DIN_SSC
ZYL00400105
ISO_SSC
ZYL01F4000h$06
Number of teeth (Z)
1
St.
Cutting diameter (d1)
1
mm
Neck length (l3)
3.5
mm
Shank diameter (d2)
4
mm
