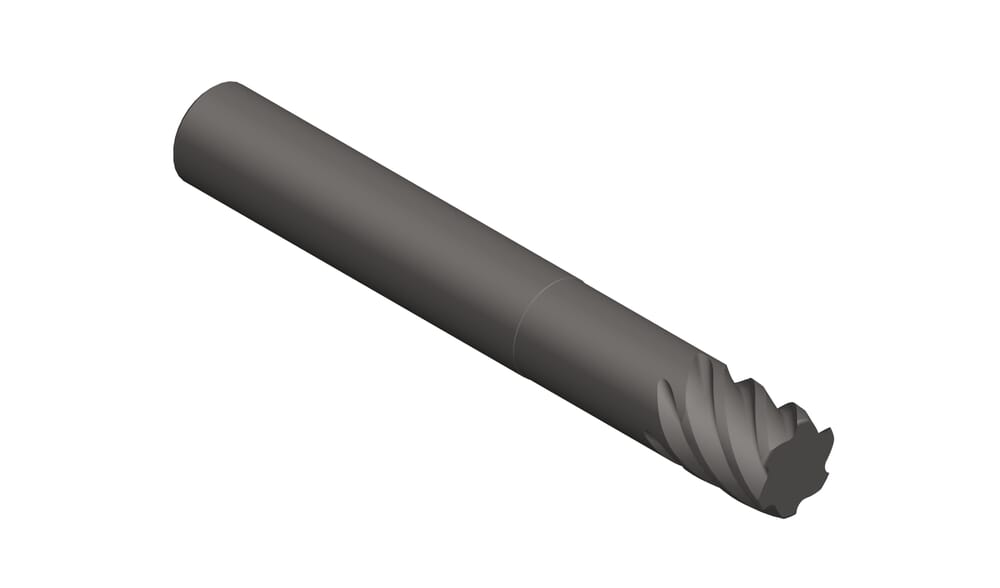

DSM.6.05.63.06S TS3K
DS Milling cutter
Part number DSM6056306STS3K
HORN DS Milling cutter DSM.6.05.63.06S TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

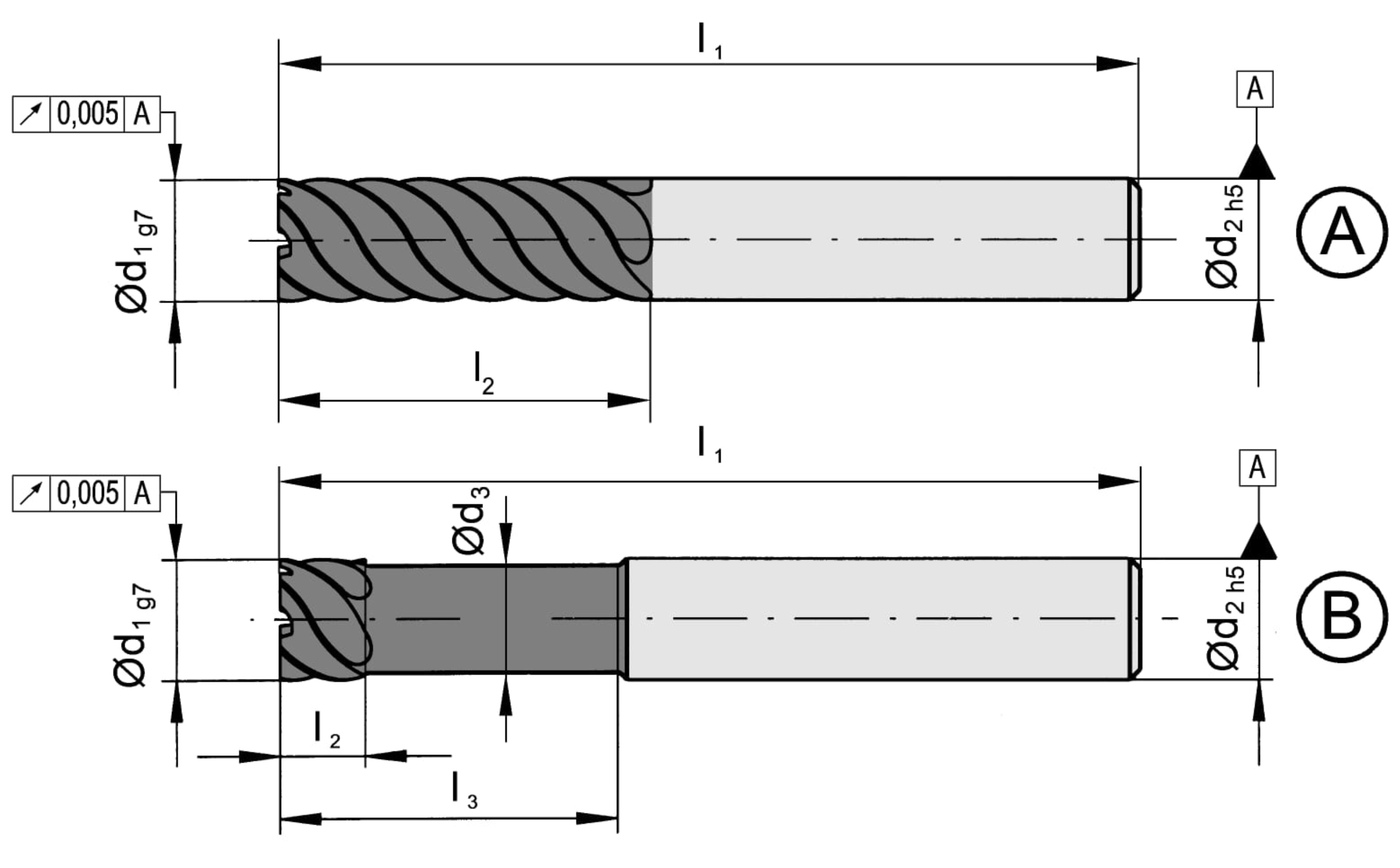

Total length (l1)
63
mm
Effective cutting length (l2)
5
mm
Type (Ausführung)
B
Neck diameter (d3)
4.7
mm
ISO_CCTMS
ZYL01F6000h$06
DIN_CCTMS
ZYL00600105
Number of teeth (Z)
6
St.
Cutting diameter (d1)
5
mm
Neck length (l3)
15.5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSM_6_05_63_06S.STP | Download |
| Download all files | |
