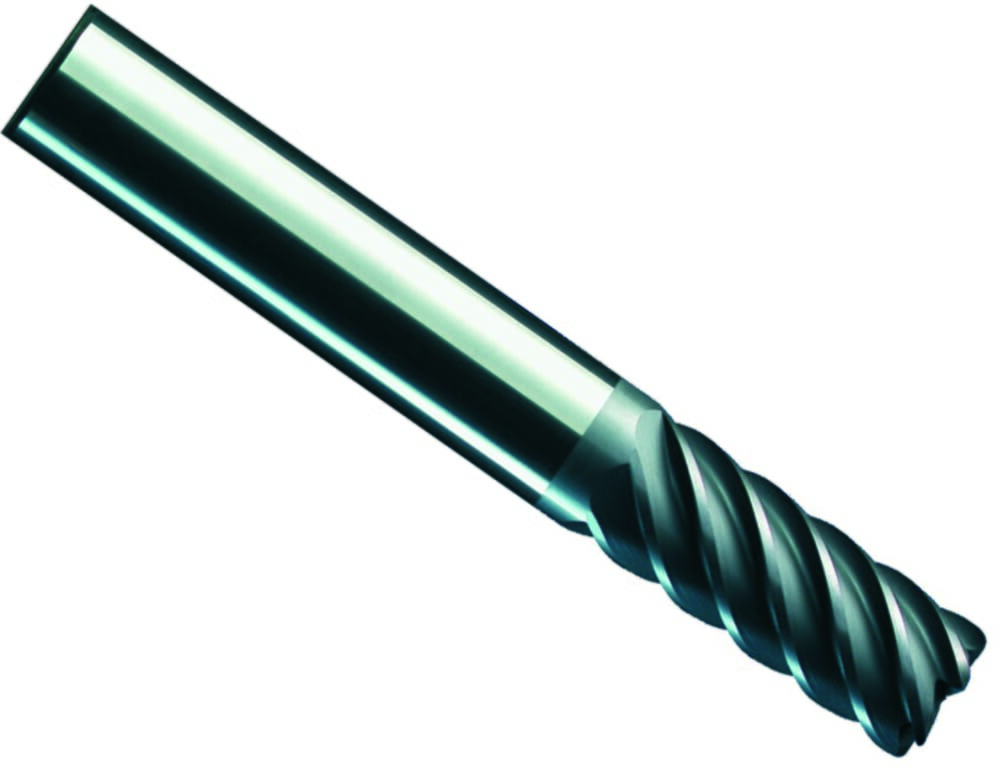

DSML.6.12.099.12 TS3K
DS Milling cutter
Part number DSML61209912TS3K
HORN DS Milling cutter DSML.6.12.099.12 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
12
mm
Cutting diameter (d1)
12
mm
Number of teeth (Z)
6
St.
DIN_CCTMS
ZYL01200105
ISO_CCTMS
ZYL01G1200h$06
Corner radius (r)
0.5
mm
Effective cutting length (l2)
40
mm
Total length (l1)
99
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSML61209912_20210629_150520426.DXF | Download |
| DSML61209912_20230112_193911804.STP | Download |
| Download all files | |
