DSMR.16.16.88.16.05 TS3K
Part number DSMR1616881605TS3K

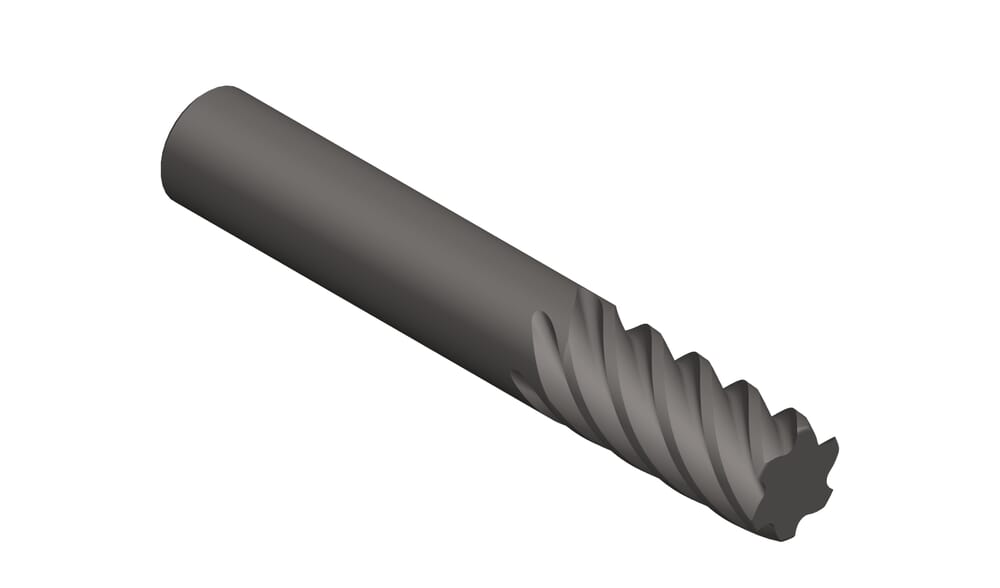

HORN DSMR.16.16.88.16.05 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
16
mm
Cutting diameter (d1)
16
mm
Number of teeth (Z)
16
St.
DIN_CCTMS
ZYL01600105
ISO_CCTMS
ZYL01G1600h$06
Corner radius (r)
0.5
mm
Type (Ausführung)
A
Effective cutting length (l2)
34
mm
Total length (l1)
88
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMR_16_16_88_16_05_20171121_185222564.STP | Download |
| Download all files | |
