DSMR.6.04.63.06.03 TS3K

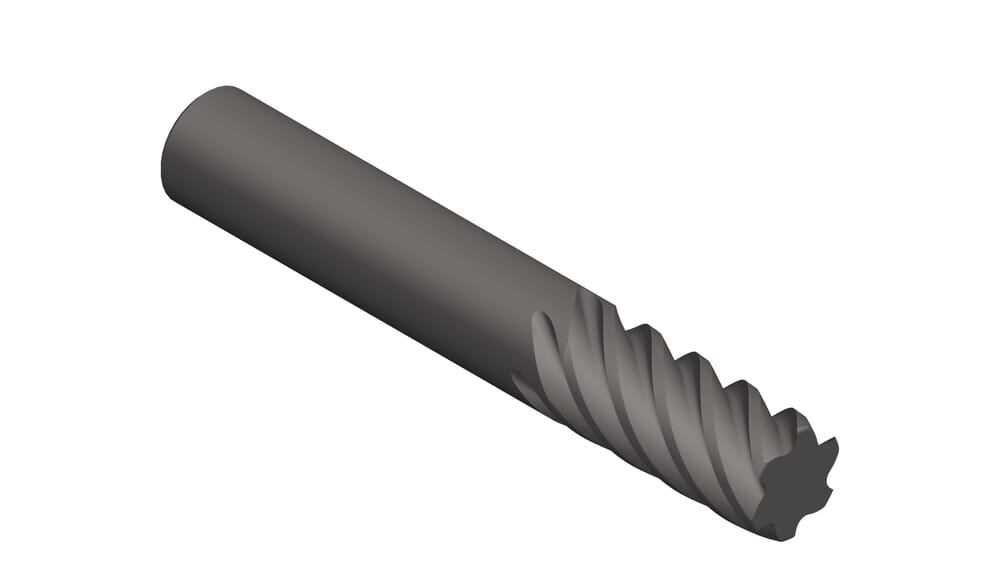

DS Milling cutter
Part number DSMR604630603TS3K
HORN DS Milling cutter DSMR.6.04.63.06.03 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
6
mm
Cutting diameter (d1)
4
mm
Number of teeth (Z)
6
St.
DIN_CCTMS
ZYL00600105
ISO_CCTMS
ZYL01F6000h$06
Corner radius (r)
0.3
mm
Type (Ausführung)
A
Effective cutting length (l2)
10
mm
Total length (l1)
63
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMR_6_04_63_06_03_20171121_185547715.STP | Download |
| Download all files | |
