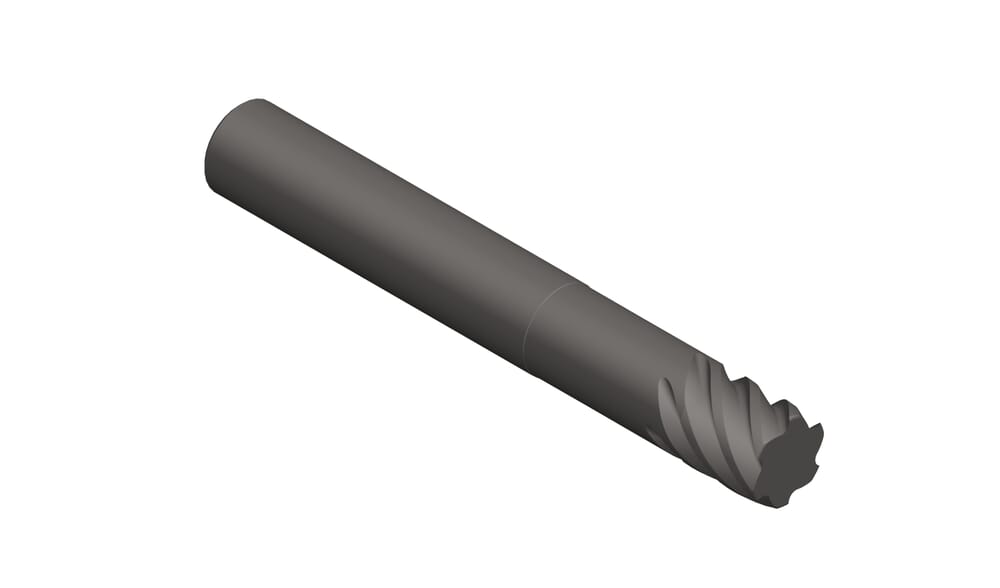

DSMR.6.05.63.06.05S TS3K
DS Milling cutter
Part number DSMR605630605STS3K
HORN DS Milling cutter DSMR.6.05.63.06.05S TS3K for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
5
mm
Type (Ausführung)
B
Corner radius (r)
0.5
mm
Neck diameter (d3)
4.7
mm
ISO_CCTMS
ZYL01F6000h$06
Number of teeth (Z)
6
St.
Cutting diameter (d1)
5
mm
Shank diameter (d2)
6
mm
| Downloads | |
|---|---|
| DSMR_6_05_63_06_05S_20171121_233211995.STP | Download |
| Download all files | |
