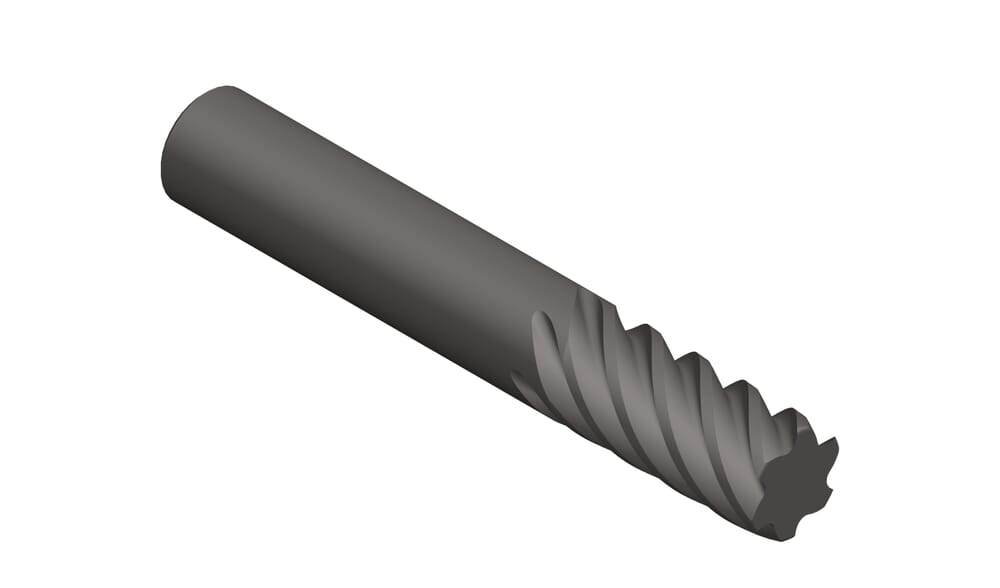

DSMR.6.08.63.08.10 TS3H
DS Milling cutter
Part number DSMR608630810TS3H
HORN DS Milling cutter DSMR.6.08.63.08.10 TS3H for Milling
Please note:Technical instructions
Shank diameter (d2)
8
mm
Cutting diameter (d1)
8
mm
Number of teeth (Z)
6
St.
DIN_CCTMS
ZYL01000105
ISO_CCTMS
ZYL01G1000h$06
Corner radius (r)
1
mm
Type (Ausführung)
A
Effective cutting length (l2)
20
mm
Total length (l1)
63
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMR_6_08_63_08_10_20171121_205924471.STP | Download |
| Download all files | |
