DSMR.6.10.69.10.05 TS3H
DS Milling cutter
Part number DSMR610691005TS3H

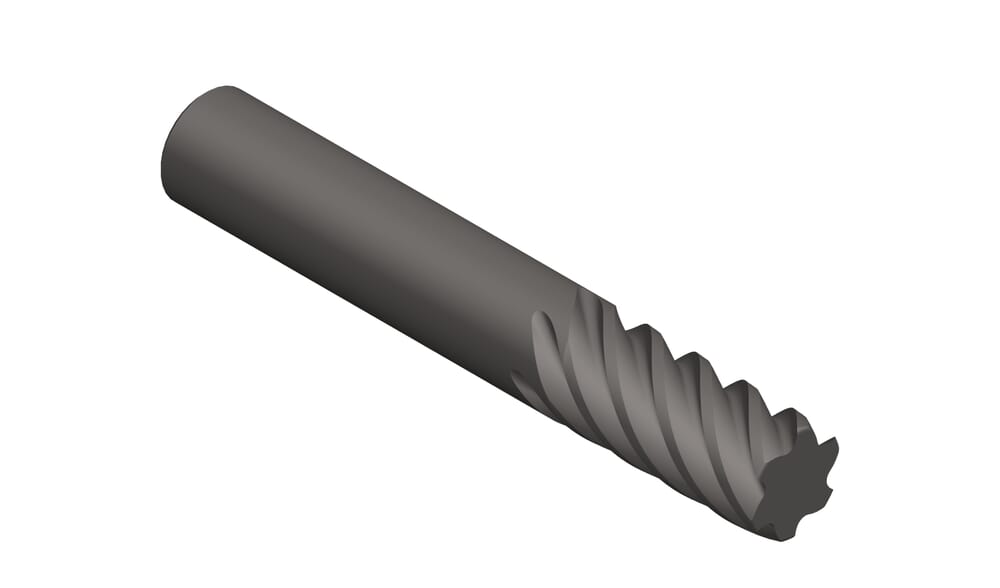

HORN DS Milling cutter DSMR.6.10.69.10.05 TS3H for Milling
Please note:Technical instructions
Shank diameter (d2)
10
mm
Cutting diameter (d1)
10
mm
Number of teeth (Z)
6
St.
DIN_CCTMS
ZYL01000105
ISO_CCTMS
ZYL01G1000h$06
Corner radius (r)
0.5
mm
Type (Ausführung)
A
Effective cutting length (l2)
25
mm
Total length (l1)
69
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMR_6_10_69_10_05_20171121_223843198.STP | Download |
| Download all files | |
