DSMR.6.12.77.12.05S TS3H
DS Milling cutter
Part number DSMR612771205STS3H

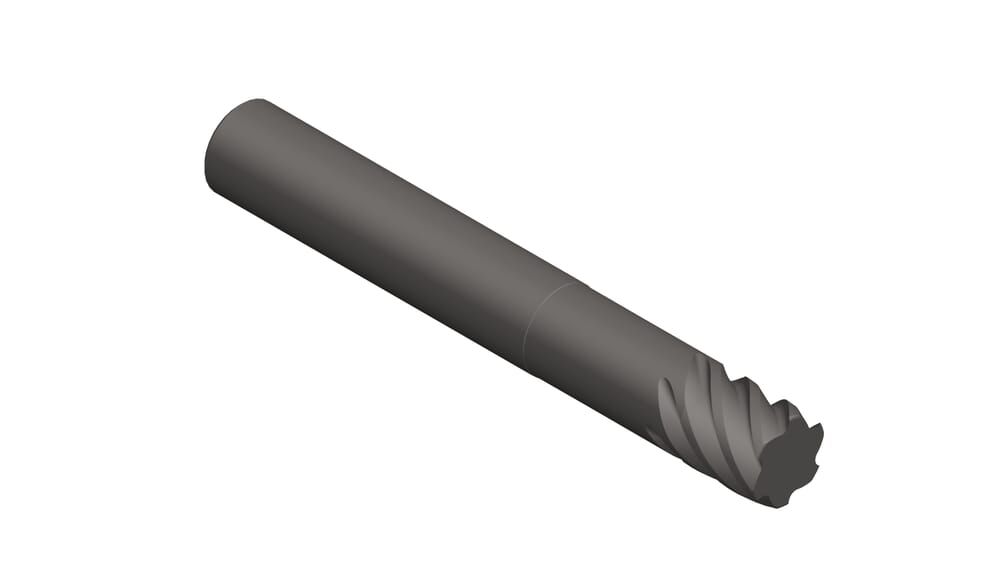

HORN DS Milling cutter DSMR.6.12.77.12.05S TS3H for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01200105
eclass-shortcut
21-18-06-01
Total length (l1)
77
mm
Effective cutting length (l2)
12
mm
Type (Ausführung)
B
Corner radius (r)
0.5
mm
Neck diameter (d3)
11.4
mm
ISO_CCTMS
ZYL01G1200h$06
Number of teeth (Z)
6
St.
Cutting diameter (d1)
12
mm
Neck length (l3)
25.5
mm
Shank diameter (d2)
12
mm
| Downloads | |
|---|---|
| DSMR_6_12_77_12_05S_20171121_235313526.STP | Download |
| Download all files | |
