DSMR.6.12.77.12.05 TS3K
DS Milling cutter
Part number DSMR612771205TS3K

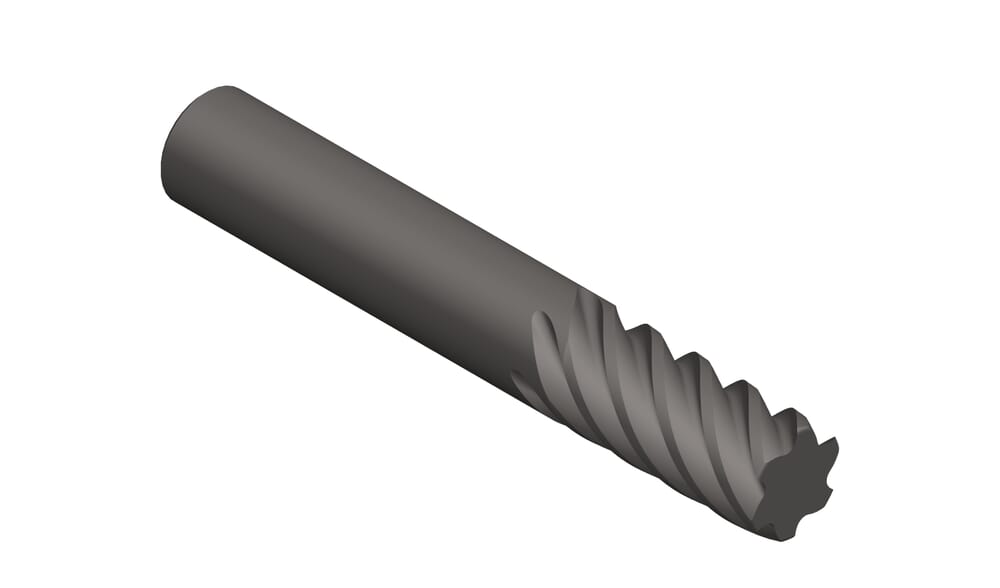

HORN DS Milling cutter DSMR.6.12.77.12.05 TS3K for Milling
Please note:Technical instructions
Shank diameter (d2)
12
mm
Cutting diameter (d1)
12
mm
Number of teeth (Z)
6
St.
DIN_CCTMS
ZYL01200105
ISO_CCTMS
ZYL01G1200h$06
Corner radius (r)
0.5
mm
Type (Ausführung)
A
Effective cutting length (l2)
25
mm
Total length (l1)
77
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMR_6_12_77_12_05.DXF | Download |
| DSMR_6_12_77_12_05_20171121_185112499.STP | Download |
| Download all files | |
