DSMRC.4.03.55.06.02 TSCC

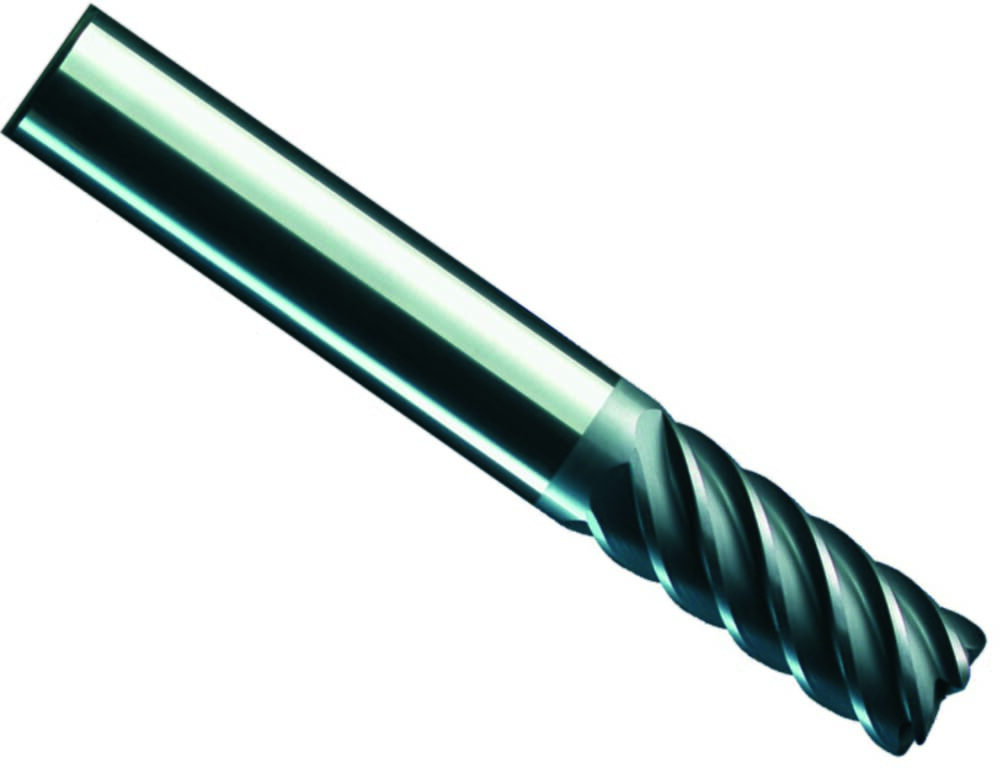

DS Milling cutter
Part number DSMRC403550602TSCC
HORN DS Milling cutter DSMRC.4.03.55.06.02 TSCC for Milling
Please note:Technical instructions
Shank diameter (d2)
6
mm
Neck length (l3)
9.5
mm
Cutting diameter (d1)
3
mm
Number of teeth (Z)
4
St.
DIN_CCTMS
ZYL00600105
ISO_CCTMS
ZYL01F6000h$06
Corner radius (r)
0.2
mm
Effective cutting length (l2)
9.5
mm
Total length (l1)
55
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMRC_4_03_55_06_02.STP | Download |
| Download all files | |
