DSMRC.5.10.77.10.10 TSCC
DS Milling cutter
Part number DSMRC510771010TSCC

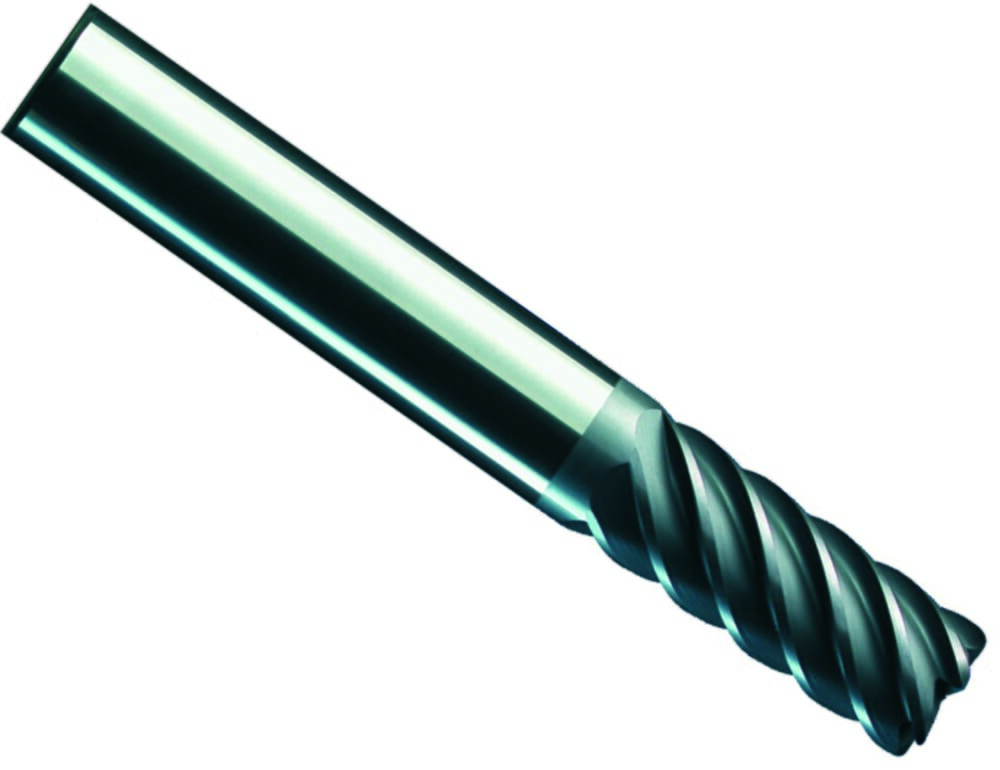

HORN DS Milling cutter DSMRC.5.10.77.10.10 TSCC for Milling
Please note:Technical instructions
Shank diameter (d2)
10
mm
Neck length (l3)
30.5
mm
Cutting diameter (d1)
10
mm
Number of teeth (Z)
5
St.
DIN_CCTMS
ZYL01000105
ISO_CCTMS
ZYL01G1000h$06
Corner radius (r)
1
mm
Effective cutting length (l2)
30.5
mm
Total length (l1)
77
mm
eclass-shortcut
21-18-06-01
| Downloads | |
|---|---|
| DSMRC_5_10_77_10_10.STP | Download |
| Download all files | |
