DSMRC.7.12.88.12.2S TSCC
DS Milling cutter
Part number DSMRC71288122STSCC
HORN DS Milling cutter DSMRC.7.12.88.12.2S TSCC for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01

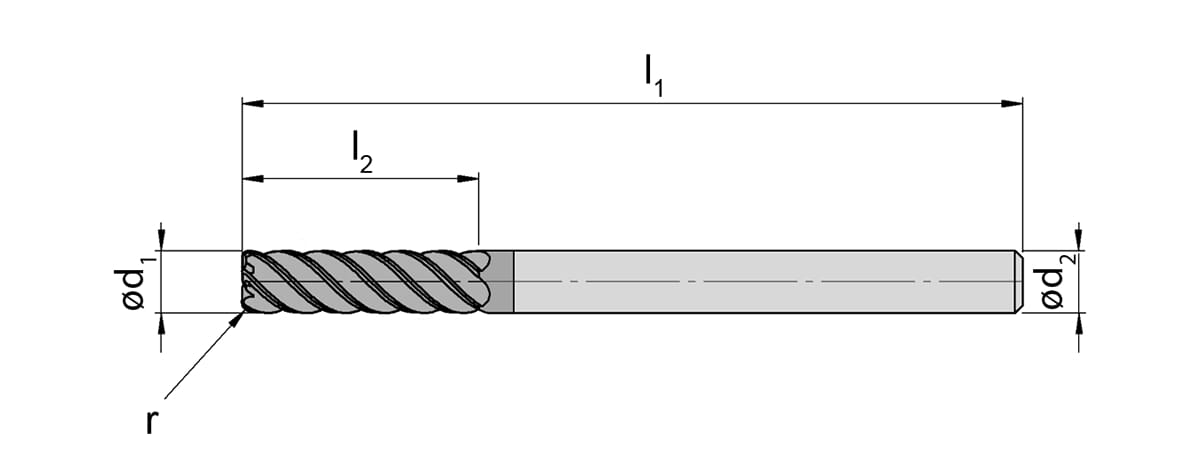

Total length (l1)
88
mm
Effective cutting length (l2)
12
mm
Corner radius (r)
0.2
mm
Neck diameter (d3)
11.8
mm
ISO_CCTMS
ZYL01G1200h$06
DIN_CCTMS
ZYL01200105
Number of teeth (Z)
7
St.
Cutting diameter (d1)
12
mm
Neck length (l3)
36.5
mm
Shank diameter (d2)
12
mm
| Downloads | |
|---|---|
| DSMRC_7_12_88_12_2S.STP | Download |
| Download all files | |
