DSMRH.6.04.020.040 TS3E
DS multi-cutter radius
Part number DSMRH604020040TS3E

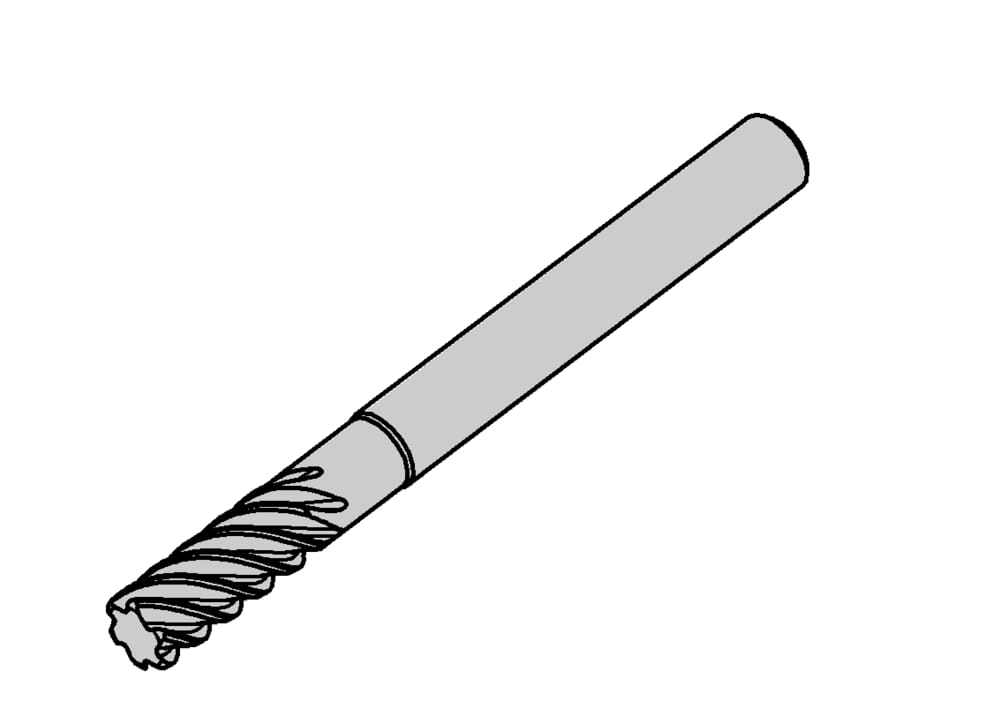

HORN DS multi-cutter radius DSMRH.6.04.020.040 TS3E for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL00600105
eclass-shortcut
21-18-06-01

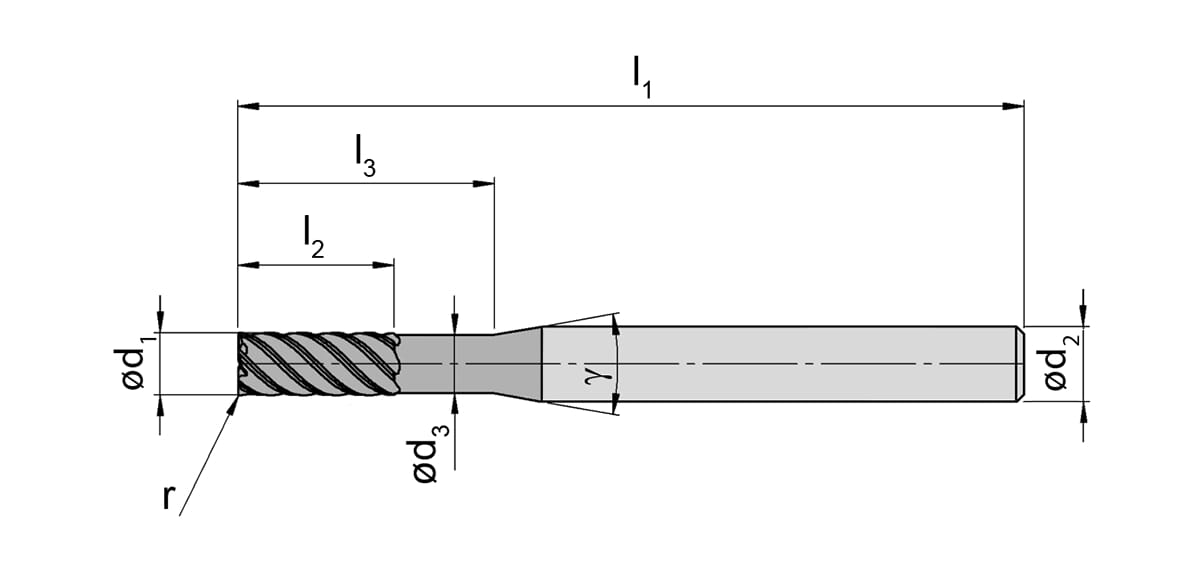

Shank tapering angle γ (γ)
20
°
Total length (l1)
64
mm
Effective cutting length (l2)
10
mm
Corner radius (r)
0.2
mm
Neck diameter (d3)
3.8
mm
ISO_CCTMS
ZYL01F6000h$06
Number of teeth (Z)
6
St.
Cutting diameter (d1)
4
mm
Neck length (l3)
16
mm
Shank diameter (d2)
6
mm
